Custom MMIC功率放大器的特征及應用
發布時間：2020-09-15 15:15:20 瀏覽：1634

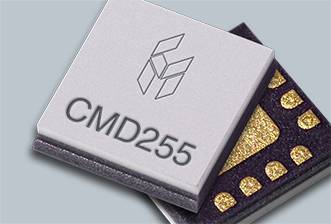

Custom MMIC在提供多個頻率和功率級別的功率放大器(PA)解決方案方面有著良好的記錄。Custom MMIC的PA支持對移動應用程序、商業基礎設施以及各種軍事和空間系統提出苛刻的系統要求。Custom MMIC功率放大器技術和產品繼續使客戶能夠改進尺寸、重量和功率(SWAP)，并提高下一代的性能。
Custom MMIC功率放大器的主要特性
從DC到W波段的頻率覆蓋
特定于應用的產品焦點(如功率或線性)
不同的功率水平和高的PAE和增益性能
優秀的熱管理
小尺寸包裝
Custom MMIC功率放大器的典型應用
軍用和商業雷達
軍事和商業衛星通信
基礎設施通信鏈路
儀器和器具
行波管放大器(TWTA)的替代品
深圳市立維創展科技是Custom MMIC的經銷商，立維創展協助選取滿足需求的最合適的MMIC優化微波射頻射頻信號鏈。Custom MMIC是一個完整性的ISO認證和同類型絕佳MMICs經銷商。供應迅速增長的高性能射頻/微波射頻MMIC產品系列。
Part # | Frequency Min
GHz | Frequency Max
GHz | Pout
dBm | Psat
dBm | Gain
dB | PAE
% | OIP3
dBm | Voltage
V | Current
mA |
CMD184 | 0.5 | 20 | 34.5 | 36.5 | 13 |
| 42 | -2.8 to 28 | 700 |
CMD216 | 14 | 18 | 37 | 38 | 16 |
| 43 | 28 | 550 |
CMD217 | 28 | 32 | 36.7 | 39.3 | 20 |
| 41 | 28 | 580 |
CMD262 | 26 | 28 | 37.5 | 38.5 | 26 |
| 43 | 28 | 400 |
QPA1000 | 2.8 | 3.2 |
| 47 | 25 | 58 |
| 25 | 200 |
QPA1001 | 3.1 | 3.5 | 48 |
| 25 | 54 |
| 30 | 200 |
QPA1003D | 1 | 8 |
| 40 | 30 | 30 |
| 28 | 650 |
QPA1003P | 1 | 8 | 40 |
| 30 | 30 |
| 28 | 650 |
QPA1006D | 10.7 | 12.7 |
| 46 | 17 | 39 |
| 20 | 1,200 |
QPA1009D | 10.7 | 12.7 |
| 43.5 | 17 | 40 |
| 20 | 600 |
QPA1010 | 7.9 | 11 |
| 42 | 25 | 38 |
| 24 | 600 |
QPA1010D | 7.9 | 11 |
| 42 | 25 | 38 |
| 24 | 600 |
QPA1011 | 7.9 | 11 |
| 44.5 | 26 | 37.5 |
| 24 | 1,200 |
QPA1011D | 7.9 | 11 |
| 45 | 26 | 37 |
| 24 | 1,200 |
QPA1013D | 6 | 18 |
| > 40 | > 25 | > 20 |
| 20 | 1,250 |
QPA1014 | 2.7 | 3.7 | 46 |
|
| 48 |
| 28 | 450 |
QPA1017D | 5.7 | 7 |
| 47 | 28 | 4 |
| 24 | 1,500 |
QPA1019 | 4.5 | 7.0 |
| 40 | 30 | 40 |
| 22 | 290 |
QPA1019D | 4.5 | 7 |
| 40 | 33.5 | 40 |
| 22 | 290 |
QPA1022 | 8.5 | 11 | 36.5 |
| 24.5 |
|
| 22 | 180 |
QPA1022D | 8.5 | 11 |
|
| 24 | 45 |
| 22 | 180 |
QPA1027 | 2.8 | 3.5 |
| 48 | 31 | 55 |
| 50 | 300 |
QPA2210D | 27 | 31 | 38.4 |
| 16 | 32 |
| 20 | 200 |
QPA2211 | 27.5 | 31 |
| 41 | 17 | 26 |
| 22 | 280 |
QPA2211D | 27.5 | 31 | 41.5 |
| 17 | 34 |
| 22 | 280 |
QPA2211T | 27.5 | 31 | 41.5 |
|
|
|
|
|
|
QPA2212D | 27.5 | 31 |
| 43.4 |
|
|
|
|
|
QPA2212T | 27.5 | 31 |
| 43.4 |
|
|
|
|
|
QPA2213D | 2 | 20 | 34 |
| 16 | 23 |
| 18 | 330 |
QPA2226D | 34 | 36 | 43 |
|
|
|
|
|
|
QPA2237 | 0.3 | 2.5 |
| > 40 | > 18.5 | > 48 |
| 32 | 360 |
QPA2308 | 5 | 6 |
| 48 | 22 | 47 |
| 28 | 1,200 |
QPA2308D | 5 | 6 | 47.8 |
| 21 | 43 |
| 28 |
|
QPA2513 | 3.1 | 3.5 |
| 51 | 30.4 | 62 |
| 50 | 228 |
QPA2576N | 2.5 | 6 |
| 46 | 29 | 36 |
| 30 | 1,550 |
QPA2598 | 6 | 12 | 34 |
| 23 | 30 |
| 22 | 55 |
QPA2611 | 8 | 12 |
| 38 | 26 | 42 |
| 24 | 105 |
QPA2612 | 8 | 12 |
| 41 | 23 | 40 |
| 24 | 250 |
QPA2966D | 2 | 20 |
| 44 |
|
|
|
|
|
QPA3055D | 2.9 | 3.6 | 49.5 |
|
| 59 |
| 28 | 300 |
QPA3055P | 2.9 | 3.5 |
| 50 | 30 | 53 |
| 30 | 300, 1,500 |
QPA3069 | 2.7 | 3.5 |
| 50 | 25 | 53 |
| 30 | 300 |
QPA3070 | 2.9 | 3.5 |
| 52 |
|
|
|
|
|
QPA9901 | 2.11 | 2.2 | 28 | 35.6 | 36.5 | 32 |
| 5 | 394 |
QPA9903 | 1.805 | 1.88 | 28 | 37 | 32 | 35 |
| 5 | 360 |
QPA9908 | 0.850 | 0.96 | 28 | 36.6 | 32.6 | 36 |
| 5 | 370 |
QPB1500 | 14.85 | 15.75 | 44 |
| 24 | 35 |
| 28 | 450 |
QPM1021 | 10 | 12 |
| 50 | 20 | 32 |
| 28 | 2,000 |
QPM2239 | 13 | 15.5 |
| 49 |
| 25 |
| 28 | 800 |
TGA2214 | 2 | 18 | > 37 |
| > 22 | > 20 |
| 22 | 450 |
TGA2214-CP | 2 | 18 | > 36 |
| > 22 | > 15 |
| 22 | 600 |
TGA2216 | 0.1 | 3 |
| > 41 | 22 | > 40 |
| 48 | 360 |
TGA2216-SM | 0.1 | 3 |
| > 41 | 22 | 50 |
| 40 | 360 |
TGA2222 | 32 | 38 | 40 | 40 | 16 | 22 |
| 26 |
|
TGA2237 | 0.03 | 2.5 |
| 40 | 19 | > 52 |
| 30 | 360 |
TGA2237-SM | 0.03 | 2.5 |
| > 40 | > 19 | > 50 |
| 32 | 360 |
TGA2307 | 5.0 | 6.0 | > 47 |
| > 26 | > 40 |
| 28 | 1,000 |
TGA2307-SM | 5 | 6 | > 47 |
| > 26 | > 44.4 |
| 28 | 500 |
TGA2573-2 | 2 | 18 | 40 | 40 | 10 | 20 |
| 30 | 500 |
TGA2573-2-TS | 2 | 18 | 40 | 40 | 10 | 20 |
| 30 | 500 |
TGA2576-2-FL | 2.5 | 6 | 46.5 | 46.5 | 29 | 36 |
| 30 | 1,550 |
TGA2578 | 2 | 6 | 45 | 45 | 27 | 40 |
| 28 | 400 |
TGA2578-CP | 2 | 6 | 45 |
| 26 | 30 |
| 28 | 400 |
TGA2583 | 2.7 | 3.7 |
| 40.5 | 33 | 54 |
| 25 | 175 |
TGA2583-SM | 2.7 | 3.7 |
| 40.6 | 33 | > 50 |
| 25 to 32 | 175 |
TGA2585 | 2.7 | 3.7 |
| 42.8 | 33 | 52 |
| 28 | 225 |
TGA2585-SM | 2.7 | 3.7 |
| 42.5 | 32 | > 50 |
| 28 | 225 |
TGA2590 | 6 | 12 |
| 45 | > 35 | > 25 |
| 20 | 2,000 |
TGA2590-CP | 6 | 12 | > 45 |
| 35 | 30 |
| 20 | 2,000 |
TGA2701-SM | 5.9 | 8.5 |
| 35 | 18 | 37 |
| 6 | 1,000 |
TGA2753-SM | 5.9 | 7.7 |
| 40 | 31 | 30 | 47 | 28 | 1,000 |
TGA2813 | 3.1 | 3.6 |
| 50.7 | 22 | 55 |
| 30 | 150 |
TGA2813-CP | 3.1 | 3.6 | 50 |
| 23 | 51 |
| 30 | 300 |
TGA2813-SM | 3.1 | 3.6 | 50 |
| > 24 | > 56 |
| 30 | 300 |
TGA2814 | 3.1 | 3.6 |
| 49.5 | 22 | 56 |
| 30 | 125 |
TGA2814-CP | 3.1 | 3.6 | 49 |
| 23 | 50 |
| 30 | 200 |
TGA2814-SM | 3.1 | 3.5 | 49.5 |
| > 24 | 55 |
| 30 | 200 |
TGA2817-SM | 2.9 | 3.5 | > 48 |
| > 24 | 54 |
| 28 | 200 |
TGA2830-SM | 2.7 | 3.5 |
| > 42.5 | > 30.5 | > 54 |
| 32 | 225 |
TGA2963 | 6 | 18 |
| 43 | > 26 | > 20 |
| 20 | 2,500 |
TGA2963-CP | 6 | 18 |
| 43 | 26 | 20 |
| 20 | 2,500 |
TGA2975-SM | 2.7 | 3.5 |
| > 41 | 31 | > 52 |
| 32 | 175 |
TGA2976-SM | 0.1 | 3 |
| > 40 | > 20 | 48 |
| 40 to 50 | 360 |
TGA4548 | 17 | 20 | 40 |
| 27 | 30 |
| 28 | 300 |
TGA4548-SM | 17 | 20 | 40 |
| 27 | 25 |
| 28 | 300 |
TGA4549-SM | 21.2 | 23.6 | 40 |
| 25 | 20 |
|
| 300 |
