Synergy微波PLL頻率合成器
發布時間：2020-09-27 16:06:42 瀏覽：2020

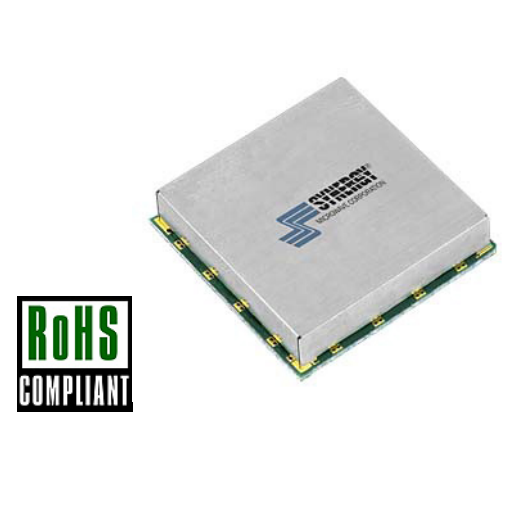

Synergy微波的各種高性能PLL頻率合成器的頻率范圍可達18 GHz。Synergy微波每種型號都具有優良的相位噪聲、極低的RMS抖動(最低可達3.7秒)、快速切換、REL PRO技術足跡(在大多數型號中)，并可容納在小尺寸的表面安裝連接或封裝。Synergy微波模型選擇是固定頻率、可選頻率或可編程的。
深圳市立維創展科技是Synergy的經銷商，主要提供Synergy微波壓控振蕩器、晶體振蕩器、鎖相振蕩器、鎖相環頻率合成器、混頻器等產品，產品位于美國北部的直接通道，快速響應中國客戶的需求。歡迎咨詢。
*部分產品型號需求請聯系我們的工程師。
Model | Frequency(MHz) | Typ. Phase Noise | Typ. Phase Noise |
@ 10 kHz | @ 100 kHz |
FCPL511-10 | 50 - 115 | -107 | -127 |
FSW511-10 | 50 - 115 | -105 | -132 |
FSW511-50 | 50 - 115 | -112 | -127 |
LFSW514-10 | 50 - 140 | -105 | -132 |
LFSW514-50 | 50 - 140 | -115 | -127 |
FCPL-70 | 65 - 72 | -112 | -131 |
FCPL610-10 | 65 - 103 | -111 | -121 |
FSW1125-10 | 110 - 250 | -104 | -132 |
FSW1125-50 | 110 - 250 | -105 | -130 |
FCPL1114-5 | 113 - 140 | -117 | -132 |
FCPL1215-25 | 120 - 150 | -100 | -125 |
FSW1545-50 | 150 - 450 | -103 | -125 |
LFSW1545-10 | 150 - 450 | -98 | -127 |
LFSW1545-50 | 150 - 450 | -102 | -125 |
FSW1857-100 | 180 - 570 | -107 | -126 |
FSW2476-10 | 240 - 760 | -98 | -124 |
FSW2476-50 | 240 - 760 | -98 | -118 |
LFSW2476-10 | 240 - 760 | -100 | -124 |
LFSW2476-50 | 240 - 760 | -100 | -119 |
KMTS2500-30525-10 | 300 - 5250 | -80 | -90 |
FCPL3239-10 | 320 - 390 | -108 | -120 |
LFSW35105-100 | 350 - 1050 | -102 | -132 |
LFSW35105-20 | 350 - 1050 | -98 | -120 |
LFSW35105-50 | 350 - 1050 | -103 | -130 |
FCPL3644-26 | 360 - 440 | -100 | -120 |
FSW40110-50 | 400 - 1100 | -95 | -122 |
KFSW40110-50 | 400 - 1100 | -95 | -122 |
MTS2500-40110-10 | 400 - 1100 | -106 | -115 |
MFSH50100-50 | 500 - 1000 | -96 | -118 |
FSW50120-50 | 500 - 1200 | -94 | -118 |
KFSW50120-50 | 500 - 1200 | -94 | -118 |
LFSW50120-50 | 500 - 1200 | -97 | -118 |
FCPL5460-10 | 540 - 605 | -104 | -116 |
FSFN570-5R0 | 569 - 571 | -112 | -145 |
FSW60135-50 | 600 - 1350 | -92 | -118 |
FSW60170-50 | 600 - 1700 | -92 | -120 |
LFSW60170-10 | 600 - 1700 | -92 | -117 |
LFSW60170-50 | 600 - 1700 | -90 | -118 |
FCPL65120-10 | 650 - 1200 | -98 | -113 |
KFCPL65120-10 | 650 - 1200 | -98 | -113 |
FSW80150-10 | 800 - 1500 | -92 | -118 |
FSW80210-50 | 800 - 2100 | -90 | -113 |
LFSW80210-100 | 800 - 2100 | -95 | -112 |
LFSW80210-50 | 800 - 2100 | -93 | -113 |
FCPL840-10 | 840 | -101 | -120 |
FSW85150-50 | 850 - 1500 | -93 | -120 |
FSH9496-20 | 940 - 970 | -109 | -134 |
FCPH1000P-10 | 1000 | -117 | -140 |
FCPH100120-15 | 1000 - 1250 | -93 | -113 |
FCPH100125-10 | 1000 - 1250 | -100 | -112 |
