KRYTAR 2路功分器
發布時間：2021-03-22 17:04:32 瀏覽：1683
KRYTAR 2功率分配器適用范圍包括新的無線超寬帶設計和諸多檢測和測量應用領域。KRYTAR充分利用其特有設計生產制造各種各樣匹配的線定向分頻器(MLDD)，在寬帶頻率范圍內具備超高性能。KRYTAR的雙向功率分配器也能夠按照軍事規格型號生產制造。
KRYTAR為定制設計提供完整性的工程服務，以滿足或超出關鍵性能指標和/或包裝標準規范。
深圳市立維創展科技授權代理RADITEK產品，部分型號備有現貨。產品原裝進口，質量保證，歡迎咨詢。
Model Number | Frequency | Frequency | Maximum VSWR In | Maximum VSWR Out | Insertion Loss (dB) | Isolation (dB) | Amplitude Tracking (dB) | Phase Tracking (Degrees) |
| Min. (GHz) | Max. (GHz) |
|
|
|
|
|
|

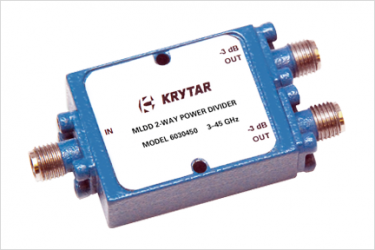

6030450 | 3 | 45 | 2.3 | 1.80 to 36 GHz | 2.10 to 36 GHz | 14 | 0.50 to 36 GHz | 10 to 36 GHz |
|
|
|
| 2.50 to 44.5 GHz | 2.80 to 45 GHz |
| 0.7 to 45 GHz | 14 to 45 GHz |
6010400K | 1 | 40 | 1.65 to 20 GHz | 1.50 to 20 GHz | 2.5 | 14 | 0.6 | 7 to 20 GHz |
|
|
| 1.85 to 40 GHz | 1.70 to 40 GHz |
|
|
| 14 to 40 GHz |
6010400 | 1 | 40 | 1.65 to 20 GHz | 1.50 to 20 GHz | 2.5 | 14 | 0.6 | 7 to 20 GHz |
|
|
| 1.85 to 40 GHz | 1.70 to 40 GHz |
|
|
| 14 to 40 GHz |
6030400 | 3 | 40 | 1.9 | 2.1 | 2.1 | 14 | 0.5 | 8 |
6030400K | 3 | 40 | 1.9 | 1.9 | 1.9 | 14.5 | 0.5 | 8 |
6060400 | 6 | 40 | 1.9 | 2.1 | 2.1 | 14 | 0.5 | 8 |
6060400K | 6 | 40 | 1.9 | 1.9 | 1.9 | 14.5 | 0.5 | 8 |
6100400 | 10 | 40 | 1.9 | 2.1 | 2.1 | 14 | 0.5 | 8 |
6100400K | 10 | 40 | 1.9 | 1.9 | 1.9 | 14.5 | 0.5 | 8 |
6180400 | 18 | 40 | 1.9 | 2.1 | 2.1 | 14 | 0.5 | 8 |
6180400K | 18 | 40 | 1.9 | 1.9 | 1.9 | 14.5 | 0.5 | 8 |
6265400 | 26.5 | 40 | 1.9 | 1.9 | 1.9 | 14.5 | 0.38 | 8 |
6265400K | 26.5 | 40 | 1.9 | 1.9 | 1.9 | 14.5 | 0.38 | 8 |
6005265 | 0.5 | 26.5 | 1.45 to 18 GHz | 1.45 to 18 GHz | 1.50 to 18 GHz | 19 | 0.30 to 18 GHz | 6 to 18 GHz |
|
|
| 1.60 to 26.5 GHz | 1.60 to 26.5 GHz | 1.90 to 26.5 GHz |
| 0.50 to 26.5 GHz | 10 to 26.5 GHz |
6010265 | 1 | 26.5 | 1.45 to 18 GHz | 1.45 to 18 GHz | 1.20 to 18 GHz | 19 to 18 GHz | 0.30 to 18 GHz | 6 to 18 GHz |
|
|
| 1.60 to 26.5 GHz | 1.60 to 26.5 GHz | 1.60 to 26.5 GHz | 21 to 26.5 GHz | 0.50 to 26.5 GHz | 10 to 26.5 GHz |
6020265 | 2 | 26.5 | 1.45 to 18 GHz | 1.45 to 18 GHz | 1.10to18GHz | 19 to 18 GHz | 0.30 to 18 GHz | 6 to 18 GHz |
|
|
| 1.60 to 26.5 GHz | 1.60 to 26.5 GHz | 1.40 to 26.5GHz | 18 to 26.5 GHz | 0.50 to 26.5 GHz | 10 to 26.5 GHz |
6005180 | 0.5 | 18 | 1.45 | 1.45 | 1.5 | 19 | 0.3 | 6 |
6010180 | 1 | 18 | 1.45 | 1.45 | 1.2 | 19 | 0.3 | 6 |
6020180 | 2 | 18 | 1.45 | 1.45 | 1.1 | 19 | 0.3 | 6 |
6020080 | 2 | 8 | 1.45 | 1.45 | 0.8 | 19.5 | 0.25 | 5 |
