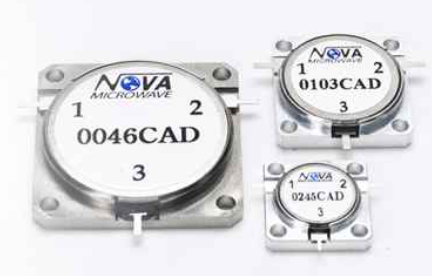

NOVA射頻微波插入式循環器
發布時間：2022-04-28 16:56:00 瀏覽：1253
NOVA射頻微波為商業、軍事、無線網絡和蜂窩市場等提供一系列廣泛的循環器。每臺機械設備在生產過程中都通過抗壓測試，以保證其在惡劣工作溫度下的使用性能，并且為NOVA客戶提供安全可靠的產品。NOVA射頻微波對鐵氧體和磁性材料的了解使NOVA能夠生產制造安全可靠且經濟高效的機械設備。
深圳市立維創展科技是NOVA的經銷商，主要提供NOVA的各種微帶線環形器與微帶線隔離器，產品原廠進口，極具價格優勢，歡迎咨詢。
詳情了解NOVA射頻微波請點擊：http://www.nfda.cn/brand/8.html
產品? | 正向功率 (W) | 反向功率 (W)? | 頻率 (GHz)? | 最小隔離 (dB)? | 最大插入損耗 (dB)? | 駐波比（Max）? | 溫度（℃）? |
1710CET | 20 | 20 | 14.500-19.700 | 18 | 0.5 | 1.3 | -40+85 |
1870CET | 20 | 20 | 17.700-19.700 | 20 | 0.5 | 1.25 | -40+85 |
1240CED | 25 | 25 | 11.100-13.700 | 20 | 0.4 | 1.25 | -40+85 |
1375CED | 25 | 25 | 11.500-16.000 | 17 | 0.5 | 1.35 | -40+85 |
1360CED | 25 | 25 | 12.700-14.500 | 20 | 0.35 | 1.25 | -40+85 |
1425CED | 25 | 25 | 14.000-14.500 | 20 | 0.4 | 1.25 | -40+85 |
1000CED | 30 | 30 | 8.500-11.500 | 17 | 0.5 | 1.35 | -40+85 |
0935CED | 30 | 30 | 9.000-9.700 | 20 | 0.35 | 1.25 | -40+85 |
1112CED | 30 | 30 | 9.500-12.750 | 20 | 0.4 | 1.25 | -40+85 |
1070CED | 30 | 30 | 9.700-11.700 | 20 | 0.4 | 1.25 | -40+85 |
0430CED | 35 | 35 | 4.200-4.400 | 20 | 0.4 | 1.25 | -40+85 |
0470CED | 35 | 35 | 4.400-5.000 | 20 | 0.4 | 1.25 | -40+85 |
0575CED | 35 | 35 | 5.000-6.500 | 17 | 0.5 | 1.25 | -40+85 |
0565CED | 35 | 35 | 5.400-5.900 | 20 | 0.4 | 1.25 | -40+85 |
0615CED | 35 | 35 | 5.800-6.500 | 20 | 0.4 | 1.25 | -40+85 |
0680CED | 35 | 35 | 6.400-7.200 | 20 | 0.4 | 1.25 | -40+85 |
0750CED | 35 | 35 | 6.500-8.500 | 20 | 0.4 | 1.25 | -40+85 |
0760CED | 35 | 35 | 7.100-7.900 | 20 | 0.4 | 1.25 | -40+85 |
0780CED | 35 | 35 | 7.200-8.400 | 20 | 0.4 | 1.25 | -40+85 |
0815CED | 35 | 35 | 7.800-8.500 | 20 | 0.4 | 1.25 | -40+85 |
0855CED | 35 | 35 | 8.300-8.800 | 20 | 0.4 | 1.25 | -40+85 |
0380CED | 50 | 50 | 3.400-4.200 | 20 | 0.4 | 1.25 | -20+85 |
0395CED | 50 | 50 | 3.600-4.300 | 20 | 0.4 | 1.25 | -40+85 |
0175CAD | 125 | 125 | 1.710-1.785 | 20 | 0.3 | 1.25 | -20+85 |
0179CAD | 125 | 125 | 1.710-1.880 | 20 | 0.35 | 1.25 | -20+85 |
0184CAD | 125 | 125 | 1.805-1.880 | 20 | 0.35 | 1.25 | -40+85 |
0192CAD | 125 | 125 | 1.850-1.990 | 20 | 0.35 | 1.25 | -40+85 |
0196CAD | 125 | 125 | 1.930-1.990 | 20 | 0.3 | 1.25 | -40+85 |
0215CAD | 125 | 125 | 2.000-2.300 | 20 | 0.5 | 1.25 | -40+85 |
0225CAD | 125 | 125 | 2.000-2.500 | 20 | 0.5 | 1.25 | -40+85 |
0240CAD | 125 | 125 | 2.300-2.500 | 20 | 0.4 | 1.25 | -40+85 |
0250CAD | 125 | 125 | 2.300-2.700 | 20 | 0.4 | 1.25 | -40+85 |
0245CAD | 125 | 125 | 2.400-2.500 | 20 | 0.35 | 1.25 | -40+85 |
0270CAD | 125 | 125 | 2.500-2.900 | 20 | 0.35 | 1.25 | -40+85 |
0300CAD | 125 | 125 | 2.900-3.100 | 20 | 0.4 | 1.25 | -40+85 |
0345CAD | 125 | 125 | 3.300-3.600 | 20 | 0.4 | 1.25 | -40+85 |
0082CAD | 150 | 150 | 0.810-0.826 | 22 | 0.3 | 1.2 | -20+85 |
0086CAD | 150 | 150 | 0.810-0.915 | 20 | 0.35 | 1.25 | -20+85 |
0084CAD | 150 | 150 | 0.824-0.849 | 22 | 0.3 | 1.2 | -20+85 |
0088CAD | 150 | 150 | 0.860-0.904 | 22 | 0.3 | 1.2 | -20+85 |
0091CAD | 150 | 150 | 0.880-0.940 | 22 | 0.3 | 1.2 | -20+85 |
0092CAD | 150 | 150 | 0.890-0.960 | 22 | 0.3 | 1.2 | -20+85 |
0094CAD | 150 | 150 | 0.915-0.964 | 22 | 0.3 | 1.2 | -20+85 |
0100CAD | 150 | 150 | 0.980-1.020 | 22 | 0.3 | 1.2 | -20+85 |
0103CAD | 150 | 150 | 1.000-1.060 | 20 | 0.3 | 1.25 | -20+85 |
0105CAD | 150 | 150 | 1.000-1.100 | 20 | 0.3 | 1.25 | -20+85 |
0106CAD | 150 | 150 | 1.030-1.090 | 22 | 0.3 | 1.25 | -20+85 |
0130CAD | 150 | 150 | 1.250-1.350 | 20 | 0.3 | 1.25 | -20+85 |
0150CAD | 150 | 150 | 1.400-1.600 | 20 | 0.4 | 1.25 | -20+85 |
0144CAD | 150 | 150 | 1.429-1.453 | 22 | 0.3 | 1.2 | -20+85 |
0147CAD | 150 | 150 | 1.429-1.501 | 22 | 0.35 | 1.2 | -20+85 |
0149CAD | 150 | 150 | 1.477-1.501 | 22 | 0.3 | 1.2 | -20+85 |
0158CAD | 150 | 150 | 1.500-1.660 | 20 | 0.35 | 1.25 | -20+85 |
0046CAD | 250 | 250 | 0.450-0.470 | 22 | 0.4 | 1.2 | -20+85 |
0048CAD | 250 | 250 | 0.450-0.500 | 20 | 0.5 | 1.25 | -20+85 |
0049CAD | 250 | 250 | 0.470-0.512 | 20 | 0.5 | 1.25 | -20+85 |
