WENTEQ大功率同軸終端
發布時間：2022-05-10 16:51:41 瀏覽：821
同軸終端是微波射頻無源單端口元器件，普遍使用于微波設備和微波射頻電源電路中。同軸終端的主要作用是全面吸收光纖傳輸?shù)奈⒉ㄉ漕l能量，提高電源電路的匹配性能。同軸終端通常連接到電源電路的終端，因此也稱為終端負載或匹配負載。射頻同軸終端普遍使用于無線電設備、儀表儀器、各種微波設備等系統中，適用于匹配閑置備用通道和測試端口的阻抗，不僅確保了信號阻抗匹配，而且大大減少了閑置端口的信號泄漏和系統間的互相影響。

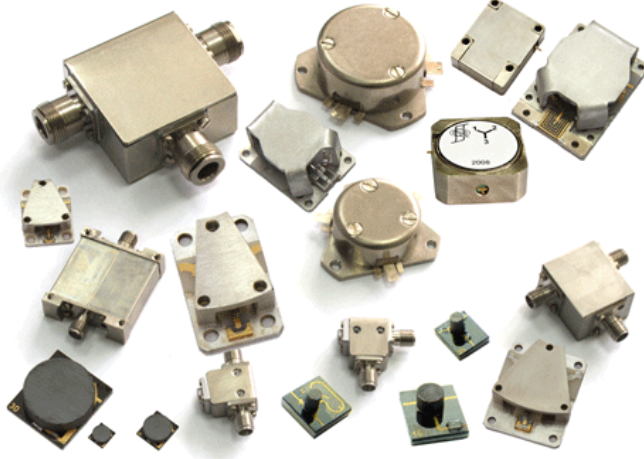

WENTEQ提供各種高品質的射頻和微波產品，交貨時間短，價格有競爭力。產品包括同軸連接器和適配器、循環器、隔離器、低噪聲放大器、功率放大器、寬帶放大器、端子、波導元件等。
深圳市立維創展科技是WENTEQ的經銷商，主要提供WENTEQ產品包括環形器、隔離器、負載終端等，產品原裝進口，質量保證，交貨時間短，價格優勢，歡迎咨詢。
詳情了解WENTEQ請點擊：http://www.nfda.cn/brand/29.html
Part No. | Frequency (GHz) | CW Power (W) | Pulse Power (kW) | VSWR | Connector Type | Size LxWxH mm | Cooling Method |
TC0120 | DC-0.5GHz | 1000 | 30 | 1.20 | DIN 7/16-Female | 150x160x400 | air |
TC0150 | DC-0.5GHz | 500 | 3 | 1.20 | DIN 7/16 or N type F | 8.46X5.90X5.90inch | air |
TC0220 | 0.2-1.0GHz | 500 | 100 | 1.20 | DIN 7/16-female | 150x160x400 | air |
TC0300 | DC-2.0GHz | 200 | 5 | 1.20 | N-female | 4.72x4.72x9.84inch | air |
TC0380 | DC-2.0GHz | 100 | 1 | 1.20 | N-female | 4.72x4.72x5.91inch |
|
TC0520 | DC-4.0GHz | 200 | 5 | 1.25 | N-male | 5.89x4.06x4.33inch |
|
TC0580 | DC-4.0GHz | 100 | 5 | 1.25 | N-male | 5.89x4.06x4.33inch | air |
TC0640 | DC-4.0GHz | 50 | 5 | 1.25 | N-male | 4.21x3.50x2.756inch | air |
TC0641 | DC-4.0GHz | 50 | 5 | 1.25 | DIN 7/16 male | 4.21x3.50x2.756inch | air |
TC0701 | DC-4.0GHz | 25 | 4 | 1.20 | DIN 7/16 male | $1.50x1.830inch | air |
TC0800 | DC-3.0GHz | 600 | 10 | 1.30 | DIN 7/16 male | 17.80x5.90x6.30inch | air |
TC1040 | DC-4.0GHz | 10 | 1 | 1.20 | N-male | $40x40 | air |
TC1080 | DC-4.0GHz | 1 |
| 1.20 | N-male | $21x30 | air |
TC1180 | DC-8.0GHz | 5 | 0.5 | 1.20 | N-male | $21x45 | air |
TC1260 | DC-8.0GHz | 0.5 |
| 1.15 | SMA-male | $8x12 | air |
TC1380 | DC-12.0GHz | 0.5 |
| 1.20 | SMA-male | $8x12 | air |
TC1580 | DC-18.0GHz | 0.5 | 1 | 1.25 | SMA-male | $8x12 | air |
