?API SAW Oscillators法蘭端接
發布時間：2022-12-08 16:39:32 瀏覽：690

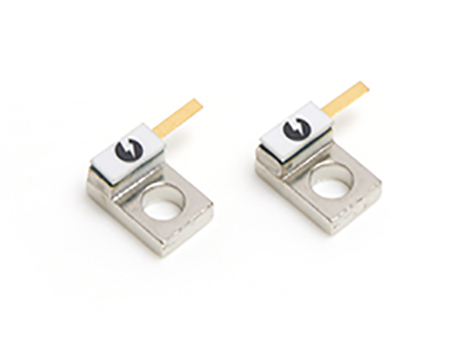

API SAW Oscillators提供各種Powerfilm法蘭端選擇。這些高功率電阻元件設計主要用于即便在最大功率情況下也能夠在射頻電路中高效地耗散額定功率。Powerfilm法蘭端子一般主要用于隔離器，威爾金森電源模塊分配器，或主要用于停止3db帶或微帶線混合電路。Powerfilm法蘭端子指標值為50和100Ω，主要用于頻率最高為7GHz的峰值功率和額定功率水平最高為1250瓦的額定功率。法蘭尺寸范圍從0.3“x0.2”到1.9“x1.0”。Powerfilm法蘭端可以根據需求提高其它設計。
API Tech為全世界高可靠性行業提供SAW振蕩器。API Tech選用超低相噪聲表濾波器，其相位噪聲性能極低。API的SAW產品可提供頻率范圍為100MHz至4000MHz，特別適合航空航天應用領域。API Tech提供穩定頻率、電壓控制和鎖相振蕩器。
深圳市立維創展科技有限公司，專注API SAW Oscillators超低相噪SAW晶振產品代理銷售，最快2-4周交付。
詳情了解API SAW Oscillators請點擊：http://www.nfda.cn/brand/60.html
Model | Power
(Watts) | Frequency
(GHz) | Ceramic
Substrate | Resistor
Film | Width
(Inches) | Length
(Inches) | Height
(Inches) | Figure |
7ANT300-25 | 25 | 7 | AIN | Thin | 0.300 | 0.200 | 0.105 | 1 |
ANT1250-250LP | 250 | 3 | AlN | Thin | 1.250 | 0.500 | 0.170 | 3 |
ANT1250-400 | 400 | 1 | AlN | Thin | 1.250 | 0.500 | 0.170 | 3 |
ANT1900-600 | 600 | 0.2 | AlN | Thin | 1.900 | 1.04 | 0.190 | 4 |
ANT300-10 | 10 | 4 | AlN | Thin | 0.300 | 0.200 | 0.105 | 1 |
ANT300-25 | 25 | 4 | AlN | Thin | 0.300 | 0.200 | 0.105 | 1 |
ANT515-40 | 40 | 2.5 | AlN | Thin | 0.515 | 0.250 | 0.125 | 2 |
ANT515-80 | 80 | 1 | AlN | Thin | 0.515 | 0.250 | 0.125 | 2 |
ANT800-100 | 100 | 3 | AlN | Thin | 0.800 | 0.230 | 0.105 | 3 |
ANT800-150 | 150 | 4 | AlN | Thin | 0.800 | 0.230 | 0.105 | 3 |
ANT870-150 | 150 | 3 | AlN | Thin | 0.870 | 0.375 | 0.105 | 3 |
ANT870-150LP | 150 | 3 | AlN | Thin | 0.870 | 0.375 | 0.105 | 3 |
ANT975-200 | 200 | 1 | AlN | Thin | 0.975 | 0.375 | 0.170 | 3 |
ANT975-250 | 250 | 2.7 | AlN | Thin | 0.975 | 0.375 | 0.170 | 3 |
KAT1900-1000 | 1000 | 1.0 | AIN | Thick | 1.900 | 1.040 | 0.190 | 4 |
KAT1900-800 | 800 | 1 | AlN | Thick | 1.900 | 1.040 | 0.190 | 4 |
KAT300-25 | 25 | 2.3 | AlN | Thick | 0.300 | 0.200 | 0.105 | 1 |
KAT800-100 | 100 | 3.0 | AIN | Thick | 0.800 | 0.230 | 0.105 | 3 |
KAT800-125 | 125 | 3 | AlN | Thick | 0.800 | 0.230 | 0.105 | 3 |
KAT870-150 | 150 | 2.7 | AlN | Thick | 0.870 | 0.375 | 0.105 | 3 |
KAT975-100 | 100 | 3.0 | AIN | Thick | 0.975 | 0.250 | 0.105 | 3 |
PPT1250-400 | 400 | 0.4 | BeO | Thin | 1.250 | 0.500 | 0.170 | 3 |
PPT1250-500 | 500 | 1.5 | BeO | Thin | 1.250 | 0.500 | 0.190 | 3 |
PPT1250-600 | 600 | 0.4 | BeO | Thin | 1.250 | 0.500 | 0.170 | 3 |
PPT1900-800 | 800 | 0.4 | BeO | Thin | 1.900 | 1.040 | 0.190 | 4 |
PPT300-10-3 | 10 | 2 | BeO | Thin | 0.300 | 0.200 | 0.105 | 1 |
PPT300-50 | 50 | 2 | BeO | Thin | 0.300 | 0.200 | 0.105 | 1 |
PPT515-20-3 | 20 | 2 | BeO | Thin | 0.515 | 0.250 | 0.125 | 2 |
PPT515-30 | 30 | 2 | BeO | Thin | 0.515 | 0.250 | 0.125 | 2 |
PPT515-30-4 | 30 | 6 | BeO | Thin | 0.515 | 0.250 | 0.105 | 2 |
PPT515-75 | 75 | 7 | BeO | Thin | 0.515 | 0.250 | 0.125 | 2 |
PPT515-80 | 80 | 2 | BeO | Thin | 0.515 | 0.250 | 0.125 | 2 |
PPT800-100A | 100 | 2 | BeO | Thin | 0.800 | 0.230 | 0.105 | 3 |
PPT800-40-3 | 40 | 4 | BeO | Thin | 0.800 | 0.230 | 0.105 | 3 |
PPT870-150-3 | 150 | 1 | BeO | Thin | 0.870 | 0.375 | 0.105 | 3 |
PPT870-250-3 | 250 | 1 | BeO | Thin | 0.870 | 0.375 | 0.105 | 3 |
PPT975-200LP | 200 | 4 | BeO | Thin | 0.975 | 0.375 | 0.170 | 3 |
PPT975-250-3 | 250 | 1 | BeO | Thin | 0.975 | 0.375 | 0.170 | 3 |
PPT975-300 | 300 | 4 | BeO | Thin | 0.975 | 0.375 | 0.170 | 3 |
PPT975-300LP | 300 | 4 | BeO | Thin | 0.975 | 0.375 | 0.170 | 3 |
TPT1250-500 | 500 | 2 | BeO | Thick | 1.250 | 0.500 | 0.170 | 3 |
TPT1900-1250 | 1250 | 0.4 | BeO | Thick | 1.900 | 1.040 | 0.190 | 4 |
