?MegaPhase射頻定向耦合器
發布時間：2023-03-28 16:45:00 瀏覽：1278

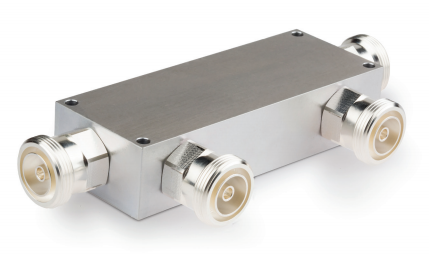

MegaPhase射頻定向耦合器具備多方面耦合電路值和頻帶寬度以滿足更多技術應用和系統需求。射頻定向耦合器設計用作最良性的實驗環境，能夠滿足軍工用L波段和空間系統的嚴格管理。MegaPhase射頻定向耦合器能夠在眾多封裝和連接器系列中完成耦合電路值、全局性和插入損耗的嚴苛公差。
窄帶雙向耦合器：
倍頻程和多倍頻程頻率段至12GHz
6、10、20和30dB耦合電路
具備N型、SMA型和2.92mm連接器
大功率、低插入損耗
設計滿足MIL-DTL-15370
適用的環境篩選
窄帶定向耦合器：
寬帶至26.5GHz
10、16、20dB耦合電路
25W功率解決
SMA和2.92mm連接器適用
設計滿足MIL-DTL-15370環境標準
可進行選擇
寬帶定向耦合器：
多倍頻程帶至18GHz
T6、10、20和30dB耦合電路
50W功率解決
具備N型、SMA型和2.92mm連接器
設計滿足MIL-DTL-15370
適用的環境篩選
MegaPhase毫米波元器件成立于1998年，是美國著名的微波電纜供應商。MegaPhase公司設計和生產高可靠性射頻同軸線纜、連接器產品，MegaPhase毫米波線纜產品廣泛應用服務于微波于微波于光電系統，尤其是測試、防務電子、衛星通信、寬帶數據通信等。MegaPhase產品線頻率可達到DC-110GHz.
深圳市立維創展科技授權代理銷售MegaPhase產品，主要提供MegaPhase產品的穩相電纜和電纜組件，并提供售后支持服務，歡迎咨詢。
詳情了解MegaPhase微波電纜請點擊：http://www.nfda.cn/brand/40.html
Narrow Band Dual Direction Couplers
MegaPhase Model No. | Type | Frequency Range (GHz) | Connectors | Coupling (dB, Nom.) | Frequency Sensitivity (dB, Max.) | Directivity (dB, Min.) | Insertion Loss (dB, Max) | Main Line VSWR | Coupled Line VSWR | Size |
DDC-40N-.17G | Dual 40 dB | .1 to .25 | N-F | 40 | 1 | 20 | 0.55 | 1.25 | 1.35 | 5.00 x 2.00 x 1.25 750 745 740 |
DDC-40NS-.17G | Dual 40 dB | N/SMA-F |
DDC-40NB-.17G | Dual 40 dB | N/BNC-F |
Wide Band Directional Couplers
MegaPhase Model No. | Type | Frequency Range (GHz) | Connectors | Coupling (dB, Nom.) | Frequency Sensitivity (dB, Max.) | Directivity (dB, Min.) | Insertion Loss (dB, Max) | Main Line VSWR | Coupled Line VSWR | Size |
DC27-10S-4G | 10 dB | 0.3 – 8.0 | SMA -F | 10, 20 | 1.2 | 15 | 1 | 1.5 | 1.5 | 6.00 x .73 x .50 |
DC27-20S-4G | 20 dB |
DC36-10S-9.2G | 10 dB | 0.5 – 18.5 | SMA -F | 10, 20 | 1.2 | 12 | 1.6 | 1.8 | 1.8 | 4.40 x .73 x .50 |
DC36-20S-9.2G | 20 dB |
DC9-10S -10G | 10 dB | 2.0-18.0 | SMA -F | 6, 10, 15 20, 30 dB | 1.2 | 12 10 (30 dB) | 1 | 1.8 | 1.8 | 2.25 x .73 x .50 |
DC9-15S-10G | 15 dB |
DC9-20S-10G | 20 dB |
DC9-30S-10G | 30 dB |
Narrow Band Directional Couplers
MegaPhase Model No. | Type | Frequency Range (GHz) | Connectors | Coupling (dB, Nom.) | Frequency Sensitivity (dB, Max.) | Directivity (dB, Min.) | Insertion Loss (dB, Max) | Main Line VSWR | Coupled Line VSWR | Size |
|
DC3-3N-.32 | 3 dB | .13-.520 | NF (C-5352-dB will be dual directional) | 3 to 40* (40 dB is 30 w/ internal pad) | 1 to 2 | 18 (3-7 dB) 20 (10+ dB) | 0.3 dB above theoretical coupling loss | 1.3 | 1.3 | 5.80 x 2.00 x 1.00 |
|
DC3-4N-.32 | 4 dB |
|
DC3-5N-.32 | 5 dB |
|
DC3-6N-.32 | 6 dB |
|
DC3-7N-.32 | 7 dB |
|
DC3-10N-.32 | 10 dB |
|
DC3-15N-.32 | 15 dB |
|
DC3-20N-.32 | 20 dB |
|
DC3-30N-.32 | 30 dB |
|
DC7-5N-1.5G | 5 dB | .38-2.7 | N-F | 5 to 30 dB | 1 | 20 | 0.7 | 1.35 | 1.35 | 6.46 x 1.21 x .72 343 312 283 |
|
DC7-6N-1.5G | 6 dB |
|
DC7-7N-1.5G | 7 dB |
|
DC7-10N-1.5G | 10 dB |
|
DC7-15N-1.5G | 15 dB |
|
DC7-20N-1.5G | 20 dB |
|
DC7-30N-1.5G | 30 dB |
|
DC2-XS-.75G* | 6, 10, 15, 20, 30 dB | 0.5 – 1.0 | SMA -F | 6, 10, 15, 20, 30 Db * | 1 | 20 dB (up to 4GHz) | 0.6 | 1.3 (up to 4GHz) | 1.3 (up to 4GHz) | 4.40 x .73 x .50 |
DC4-XS-1.25G* | 0.5 – 2.0 | 4.40 x .73 x .50 |
DC4-XS-1.7G* | 0.7 – 2.7 | 4.40 x .73 x .50 |
DC2-XS-1.5G* | 1.0 – 2.0 | 15 dB (up to 12GHz) | 1.5 (up to 12GHz) | 1.5 (up to 12GHz) | 3.50 x .73 x .50 |
DC4-XS-2.5G* | 1.0 – 4.0 | 3.50 x .73 x .50 |
DC2-XS-3G* | 2.0 – 4.0 | 2.25 x .73 x .50 |
DC2-XS-3.9G* | 2.6 – 5.2 | 12 dB (up to 18GHz) | 1.7 (up to 18GHz) | 1.7 (up to 18GHz) | 2.25 x .73 x .50 |
DC2-XS-6G* | 4.0 – 8.0 | 1.10 x .65 x .50 |
DC2-XS-9.5G* | 7.0 – 12.4 | 1.10 x .65 x .50 |
DC2-XS-15G* | 12.0– 18.0 | 1.10 x .65 x .50 |
