?PULSAR 90°混合耦合器/分配器2:1 至 4:1 帶寬
發布時間：2023-05-24 16:53:44 瀏覽：1153
PULSAR 90°混合分頻器的頻率范圍為5至600MHz，頻帶寬度為2:1至4:1。大部分裝置的最高插入損耗為0.5dB。PULSAR90°混合耦合器/分配器設計主要用于最高1w的額定功率，負載VSWR為1.2:1或效果更好。主要用于50Ω工作環境。

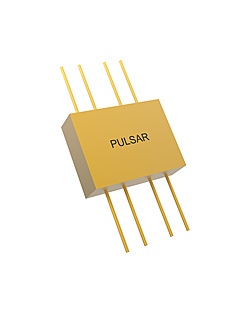

PULSAR主要以三種不占用空間的封裝形式提供該產品組合。連接器線條412標準配置SMA母連接器。OutlineC是種表面貼裝封裝形式，主要用于PCB面積有限的手持式應用。Outline301是封閉的，主要用于極端環境。
PULSAR微波公司成立于1987年，PULSAR主要為世界商業客戶提供性價比高微波產品，目前，PULSAR標準產品工作頻率可高達到85GHz,并能夠提供產品定制服務。PULSAR已經獲得ISO-9001認證、美國ITAR認證，所有產品均符合RoHS標準。
深圳市立維創展科技授權代理銷售PULSAR微波產品，并提供售后支持服務，歡迎咨詢。
詳情了解PULSAR放大器請點擊：http://www.nfda.cn/brand/39.html
Bandwidth | Frequency Range
(MHz) | Insertion
Loss
(dB)
max. | Isolation
(dB)
min. | Amplitude
Balance
(dB)
max. | Phase
Balance
(deg)
max. | VSWR
max. | Package
Type | P/N |
Min | Max |
3:1 | 5 | 15 | 0.6 | 25 | 1.0 | 2° | 1.30:1 | Pin | Q3-01-301 |
3:1 | 5 | 15 | 0.6 | 25 | 1.0 | 2° | 1.30:1 | SMA | Q3-01-412 |
3:1 | 5 | 15 | 0.6 | 25 | 1.0 | 2° | 1.30:1 | Surface | Q3-01-C |
2:1 | 10 | 20 | 0.5 | 25 | 0.6 | 2° | 1.20:1 | Pin | Q2-01-301 |
2:1 | 10 | 20 | 0.5 | 25 | 0.6 | 2° | 1.20:1 | SMA | Q2-01-412 |
2:1 | 10 | 20 | 0.5 | 25 | 0.6 | 2° | 1.20:1 | Surface | Q2-01-C |
3:1 | 10 | 30 | 0.6 | 23 | 1.0 | 2° | 1.30:1 | Pin | Q3-02-301 |
3:1 | 10 | 30 | 0.6 | 23 | 1.0 | 2° | 1.30:1 | SMA | Q3-02-412 |
3:1 | 10 | 30 | 0.6 | 23 | 1.0 | 2° | 1.30:1 | Surface | Q3-02-C |
2:1 | 15 | 30 | 0.5 | 25 | 0.6 | 2° | 1.20:1 | Pin | Q2-02-301 |
2:1 | 15 | 30 | 0.5 | 25 | 0.6 | 2° | 1.20:1 | SMA | Q2-02-412 |
2:1 | 15 | 30 | 0.5 | 25 | 0.6 | 2° | 1.20:1 | Surface | Q2-02-C |
2:1 | 20 | 40 | 0.5 | 25 | 0.6 | 2° | 1.20:1 | Pin | Q2-03-301 |
2:1 | 20 | 40 | 0.5 | 25 | 0.6 | 2° | 1.20:1 | SMA | Q2-03-412 |
2:1 | 20 | 40 | 0.5 | 25 | 0.6 | 2° | 1.20:1 | Surface | Q2-03-C |
3:1 | 20 | 60 | 0.6 | 23 | 1.0 | 3° | 1.30:1 | Pin | Q3-03-301 |
3:1 | 20 | 60 | 0.6 | 23 | 1.0 | 3° | 1.30:1 | SMA | Q3-03-412 |
3:1 | 20 | 60 | 0.6 | 23 | 1.0 | 3° | 1.30:1 | Surface | Q3-03-C |
2:1 | 30 | 60 | 0.5 | 25 | 0.6 | 2° | 1.20:1 | Pin | Q2-04-301 |
2:1 | 30 | 60 | 0.5 | 25 | 0.6 | 2° | 1.20:1 | SMA | Q2-04-412 |
2:1 | 30 | 60 | 0.5 | 25 | 0.6 | 2° | 1.20:1 | Surface | Q2-04-C |
2:1 | 40 | 80 | 0.5 | 25 | 0.6 | 2° | 1.20:1 | Pin | Q2-05-301 |
2:1 | 40 | 80 | 0.5 | 25 | 0.6 | 2° | 1.20:1 | SMA | Q2-05-412 |
2:1 | 40 | 80 | 0.5 | 25 | 0.6 | 2° | 1.20:1 | Surface | Q2-05-C |
2:1 | 50 | 100 | 0.5 | 23 | 0.6 | 2° | 1.20:1 | Pin | Q2-06-301 |
2:1 | 50 | 100 | 0.5 | 23 | 0.6 | 2° | 1.20:1 | SMA | Q2-06-412 |
2:1 | 50 | 100 | 0.5 | 23 | 0.6 | 2° | 1.20:1 | Surface | Q2-06-C |
3:1 | 40 | 120 | 0.6 | 20 | 1.2 | 3° | 1.30:1 | Pin | Q3-04-301 |
3:1 | 40 | 120 | 0.6 | 20 | 1.2 | 3° | 1.30:1 | SMA | Q3-04-412 |
3:1 | 40 | 120 | 0.6 | 20 | 1.2 | 3° | 1.30:1 | Surface | Q3-04-C |
2:1 | 60 | 120 | 0.5 | 23 | 0.6 | 2° | 1.30:1 | Pin | Q2-07-301 |
2:1 | 60 | 120 | 0.5 | 23 | 0.6 | 2° | 1.30:1 | SMA | Q2-07-412 |
2:1 | 60 | 120 | 0.5 | 23 | 0.6 | 2° | 1.30:1 | Surface | Q2-07-C |
2:1 | 70 | 140 | 0.5 | 22 | 0.6 | 2° | 1.30:1 | Pin | Q2-08-301 |
2:1 | 70 | 140 | 0.5 | 22 | 0.6 | 2° | 1.30:1 | SMA | Q2-08-412 |
2:1 | 70 | 140 | 0.5 | 22 | 0.6 | 2° | 1.30:1 | Surface | Q2-08-C |
2:1 | 80 | 160 | 0.5 | 22 | 0.6 | 2° | 1.30:1 | Pin | Q2-09-301 |
2:1 | 80 | 160 | 0.5 | 22 | 0.6 | 2° | 1.30:1 | SMA | Q2-09-412 |
2:1 | 80 | 160 | 0.5 | 22 | 0.6 | 2° | 1.30:1 | Surface | Q2-09-C |
2:1 | 90 | 180 | 0.5 | 20 | 0.6 | 2° | 1.30:1 | Pin | Q2-10-301 |
2:1 | 90 | 180 | 0.5 | 20 | 0.6 | 2° | 1.30:1 | SMA | Q2-10-412 |
2:1 | 90 | 180 | 0.5 | 20 | 0.6 | 2° | 1.30:1 | Surface | Q2-10-C |
2:1 | 100 | 200 | 0.5 | 20 | 0.8 | 3° | 1.40:1 | Pin | Q2-11-301 |
2:1 | 100 | 200 | 0.5 | 20 | 0.8 | 3° | 1.40:1 | SMA | Q2-11-412 |
2:1 | 100 | 200 | 0.5 | 20 | 0.8 | 3° | 1.40:1 | Surface | Q2-11-C |
3:1 | 80 | 240 | 0.6 | 20 | 1.2 | 4° | 1.30:1 | Pin | Q3-05-301 |
3:1 | 80 | 240 | 0.6 | 20 | 1.2 | 4° | 1.30:1 | SMA | Q3-05-412 |
3:1 | 80 | 240 | 0.6 | 20 | 1.2 | 4° | 1.30:1 | Surface | Q3-05-C |
2:1 | 150 | 300 | 0.6 | 20 | 0.8 | 3° | 1.40:1 | Pin | Q2-12-301 |
2:1 | 150 | 300 | 0.6 | 20 | 0.8 | 3° | 1.40:1 | SMA | Q2-12-412 |
2:1 | 150 | 300 | 0.6 | 20 | 0.8 | 3° | 1.40:1 | Surface | Q2-12-C |
3.5:1 | 95 | 335 | 0.7 | 18 | 1.8 | 4° | 1.40:1 | Pin | Q3-06-301 |
3.5:1 | 95 | 335 | 0.7 | 18 | 1.8 | 4° | 1.40:1 | SMA | Q3-06-412 |
3.5:1 | 95 | 335 | 0.7 | 18 | 1.8 | 4° | 1.40:1 | Surface | Q3-06-C |
2:1 | 200 | 400 | 0.7 | 18 | 0.8 | 3° | 1.40:1 | Pin | Q2-13-301 |
2:1 | 200 | 400 | 0.7 | 18 | 0.8 | 3° | 1.40:1 | SMA | Q2-13-412 |
2:1 | 200 | 400 | 0.7 | 18 | 0.8 | 3° | 1.40:1 | Surface | Q2-13-C |
2:1 | 300 | 600 | 0.8 | 18 | 1.0 | 5° | 1.50:1 | Pin | Q2-14-301 |
2:1 | 300 | 600 | 0.8 | 18 | 1.0 | 5° | 1.50:1 | SMA | Q2-14-412 |
2:1 | 300 | 600 | 0.8 | 18 | 1.0 | 5° | 1.50:1 | Surface | Q2-14-C |
