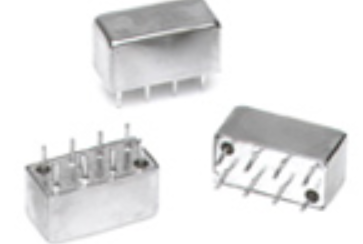

?KR Electronics低通濾波器DIP
發布時間：2024-02-22 17:13:56 瀏覽：696
低通濾波器是使用頻率不高于指定截止頻率信號并衰減頻率超過截止頻率的信號的濾波器。KR Electronics低通濾波器DIP為2-178MHz低通濾波器。低通濾波器DIP的最小帶寬為1dB，通常用于60?源阻抗和負載阻抗。其它通頻帶頻率、帶寬和特性阻抗也適用。
KR Electronics是美國一家資深射頻濾波器設計公司，服務于軍工與商業市場。其濾波器產品Bandpass Filter(帶通濾波器）、Highpass Filters(高通濾波器）、Lowpass Filters（低通濾波器）、Root Cosine Filters(根余弦濾波器)、Notch Filters(陷波濾波器)、Diplexer Filters（雙工濾波器）、Equalizers(平衡濾波器）等，產品特色以極低頻率和優秀參數著稱。
深圳市立維創展科技有限公司授權代理銷售KR Electronics濾波器產品。并提供售前和售后技術支持服務，歡迎咨詢。
Part Number | Cutoff
Frequency | Attenuation
at Cutoff | Stopband
Frequency | Stopband
Attenuation | Case
Style | Notes/Special Features |
2156-2-50 | 2 MHz | 1 | 3.75 MHz | 40 | DIP |
|
2156-3-75 | 3 MHz | 1 | 5.625 MHz | 40 | DIP | 75 Ohm |
2159-3.5-50 | 3.5 MHz | 3 | 5.15 MHz | 40 | DIP |
|
2508 | 3.5 MHz | 3 | 8.5 MHz | 25 | DIP | 75 Ohm |
2158-8-50 | 8 MHz | 3 |
|
| DIP | Linear Phase |
2159-5-50 | 5 MHz | 1 | 7.3 MHz | 40 | DIP |
|
2160-8-50 | 8 MHz | 3 |
|
| DIP |
|
2156-10-75 | 10 MHz | 1 | 18.75 MHz | 40 | DIP | 75 Ohm |
2758 | 12 MHz | 3 | 40 MHz | 50 | DIP | Linear Phase |
2156-20-50 | 20 MHz | 1 | 40 MHz | 40 | DIP |
|
2156-20-75 | 20 MHz | 1 | 37.5 MHz | 40 | DIP | 75 Ohm |
2159-20-50 | 20 MHz | 1 | 29.2 MHz | 40 | DIP |
|
2795 | 32.5 MHz | 3 | 36.8 MHz | 42 | DIP |
|
2159-35-50 | 35 MHz | 1 | 52.5 MHz | 40 | DIP |
|
2156-52-50 | 52 MHz | 1 | 104 MHz | 40 | DIP |
|
2578 | 60 MHz | 4 | 69.3 MHz | 40 | DIP | 100 Ohm Differential |
2156-65-50 | 65 MHz | 1 | 130 MHz | 40 | DIP |
|
2539 | 65 MHz | 4 | 75.1 MHz | 45 | DIP |
|
2626 | 65 MHz | 4 | 75.1 MHz | 40 | DIP | 100 Ohm Differential |
2788 | 85 MHz | 3 | 215 MHz | 60 | DIP | 100 Ohm Differential |
2739 | 89 MHz | 2 | 102 MHz | 30 | DIP |
|
2840 | 150 MHz | 2 | 250 MHz | 60 | DIP | 100 Ohm Differential |
2635 | 167 MHz | 1 | 226 MHz | 50 | DIP |
|
2556 | 175 MHz | 1.5 | 225 MHz | 45 | DIP |
|
2747 | 178 MHz | 1 | 204 MHz | 20 | DIP |
|
