Mi-Wave932-10/20/10/SMAF-2倍頻器
發布時間：2024-05-30 08:37:17 瀏覽：541

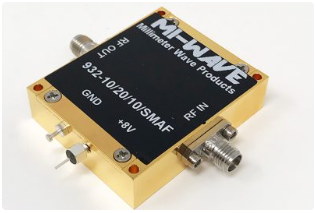

Mi-Wave932-10/20/10/SMAF-2倍頻器是Mi-Wave的93系列中的一款有源倍頻器，采用高性能MMIC芯片進行倍頻和放大處理。
Mi-Wave 的 93(x) 系列倍頻器具有以下特征：
1. 高達全波導頻段覆蓋：
2. 需要低輸入驅動電平：
3. 低次諧波：
4. 高輸出功率
應用:
1.測試實驗室
2. 子組件
3. 本地振蕩器
4. 5G和6G系統
產品型號：
Model
Number | Input Low
Frequency ÷
GHZ) | Input High
Frequency÷
(GHZ) | Output
Low
Frequency
(GHz) | Output
High
Frequency
(GHz) | Input
Power
(dBm) | Output
Power
(dBm) | Input Port | Output
+
Port | DC Bias | X
Factor |
932-
10/20/10/SMAF-
2 |
5 | 10 | 10 | 20 | +11 to 16
nominal
+17 max. | +7 to
+10
nomina |
SMA-Feamle | SMA-
Feamle | +8V@105mA,+12V
max |
2 |
932AF
20/599/KF | 13.25 | 20 | 26.5 | 40 | 0 to +5
nominal,
+10 max. | 20
nominal | K-Female | WR-28
waveguide,
UG-599/U
Flange | +8 V@470mA,+15
V max | 2 |
| 932KF-10/KF | 9 | 13.25 | 18 | 26.5 | +5 nominal,
+10 max | +15
nomina | K-Female | K-Female | +8 V@82 mA,+15 V
max | 2 |
932KF-
30/3.5mmF | 9 |
13.25 |
18 |
26.5 |
+3 to +5
nominal,
+10 max. | +31
nominal | 3.5 mm
Female | 3.5 mm
Female | +6V@1.35A,+12 V
max |
2 |
| 934BF-10/383 | 8.25 | 12.5 | 33 | 50 | +2 nominal,
+5 max. | +10
nomina | K-
Female/SMA-
Female | WR-22
waveguide
UG-383/U
Flange | +8V@0.250 A,+12V
max | 4 |
| 934BF-13/383 |
8.25 |
12.5 |
33 |
50 |
0 to +2
nominal,+5
max |
+14.5
nominal |
K-
Female/SMA-
Female |
WR-22
waveguide
UG-383/U
Flange | +8V@0.280 A,+12V
max |
4 |
| 934EF-20/387 | 15 | 22.5 | 60 | 90 | +5 to +7
nominal
+12 max. | +20
nominal | K-
Female/SMA-
Female | WR-12
waveguide
UG-387/U
Flange | +6 to
+8V@650mA,+12V
max | 4 |
| 934UF-10/383 | 10 | 15 | 40 | 60 |
0 nominal
+10max | +13
nomina | K-
Female/SMA-
Female |
WR-19
waveguide
UG-383/U-
M Flange | +6V@143mA,+6V
max | 4 |
| 934VF-10/385 | 12.5 | 18.75 | 50 | 75 | +5 nominal,
+10 max | +11
nominal | K-
Female/SMA-
Female |
WR-15
waveguide
UG-385/U
Flange | +8V@270mA,+15v
max |
4 |
| 934VF-15/385 | 12.5 | 18.75 | 50 | 75 | +5 nominal,
+10 max | +15
nominal | K-
Female/SMA-
Female | WR-15
waveguide,
UG-385/U
Flange | +10V@321mA,+15V
max |
4 |
| 936EF-10/387 | 10 | 15 | 60 | 90 |
+4
nominal,+10
max. | +13
nominal | K-
Female/SMA-
Female | WR-12
wavequide
UG-387/U
Flange | +6V@237mA,+12V
max |
6 |
| 936EF-20/387H | 10 | 15 | 60 | 90 | +5 nominal,
+10 max | +20
nomina | K-
Female/SMA-
Female | WR-12
waveguide
UG-387/U
Flange | +6V@540mA,+12V
max | 6 |
| 936WF-10/387 | 12.5 | 18.33 | 75 | 110 | +6
nominal,+10
max | +10
nomina | K-
Female/SMA-
Female | WR-10
waveguide
UG-387/U-
M Flange | +6V@309mA,+12V
max |
6 |
| 936WF-15/387 | 12.5 | 18.33 | 75 | 110 | +5 to+10
nominal
+15 max. | +16
nominal | K-
Female/SMA-
Female | WR-10
waveguide
UG-387/U-
M Flange | +12V@500mA,+15V
max |
6 |
| 936WF-20/387 | 12.5 | 18.33 | 75 | 110 | +5 to+10
nominal,
+15 max | +20
nominal | K-
Female/SMA-
Female | WR-10
waveguide
UG-387/U-
M Flange | +13V@410mA,+15V
max | 6 |
| 938EF-16/387H | 7.5 | 11.25 | 60 | 90 | +3 to +5
nominal,
+10 max | +17
nomina | K-
Female/SMA-
Female | WR-12
waveguide
UG-387/U
Flange | +8V@590mA,+12V
max | 8 |
938W-
80/106/15/388 |
8.9 |
11.78 |
80 |
106 | +7 nominal,
+10 max | +15
nominal | K-
Female/SMA-
Female |
WR-10
waveguide,
UG-387/U-
M Flange | +13V@180mA,+15V
max |
9 |
| 938WF-10/387 | 10 | 13.25 | 80 | 106 | +7 nominal,
+10 max | +15
nominal | K-
Female/SMA-
Female | WR-10
waveguide
UG-387/U-
M Flange | +6V@180mA,+12V
max | 8 |
