Features
1000 – 2000 MHz
Low Loss
High Isolation
Tight Amplitude Balance
90 deg Quadrature
Surface Mountable
CTE Matched
L-Band
Tape and Reel Option
Specifications

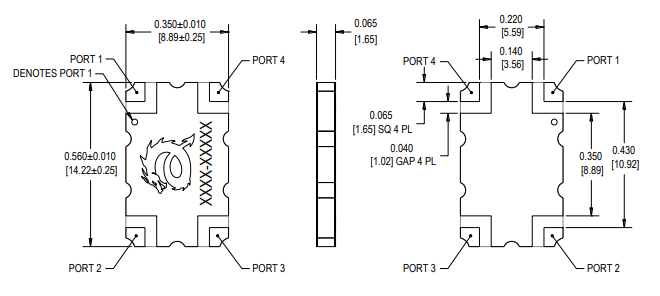

Size: .560 x .350 inches
Frequency: 1000-2000 MHz
Power: 85 W
Insertion Loss: .18 dB
Amplitude Balance: ± .55
Isolation: 24 dB
VSWR: 1.18
Phase Balance: ± 3
