產(chǎn)品詳情介紹

功分器產(chǎn)品分類： 2路、3路、4路、6路、8路、10路、12路、16路、32路模塊產(chǎn)品

阻抗：50Ohm

頻率覆蓋： DC-40GHz

功率： 250W 等

接口類型： SMA、N型、2.92mm

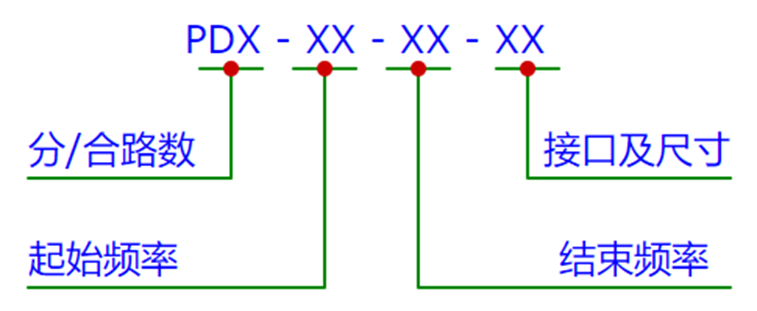

No. Ways	Technology	Connector Type	Model Number	Freqency Range (MHz)	VSWR Input Port	Insertion Loss (dB)	Isolation (dB), Typ.	Amplitude Unbalance (dB), Typ.	Phase Unbalance (deg), Typ.	Power Input (W) as Splitter, Max.	Size mmmmmm
2	Striline	SMA Female	PD2-0G1-0G2-SE	100~200	1.12	≤1.8	32	0.2	2	30	110x62x12
			PD2-0G1-4-SE	100~4000	1.12	≤2.0	-	0.3	3	30	120x40x12
			PD2-0G005-1-SE	5~1000	1.12	≤1.0	26	0.3	3	1	28x28x12.7
			PD2-0G5-6-SE	500~6000	1.12	≤1.0	28	0.2	2	30	45x36x12
			PD2-0G5-6-SI	500~6000	1.12	≤1.0	23	0.3	3	30	53.4x34.4x13
			PD2-0G5-8-SE	500~8000	1.12	≤1.2	26	0.2	3	20	56x30x10
			PD2-0G5-8-SEL	500~8000	1.12	≤1.5	25	0.2	3	30	72x28x12
			PD2-0G5-8-SI	500~8000	1.15	≤1.2	23	0.3	5	35	53.4x34.6x13
			PD2-0G5-18-SE	500~18000	1.18	≤1.0	24	0.3	4	30	157x26x10
			PD2-0G6-6-SE	600~6000	1.11	≤0.9	27	0.2	2	30	45x36x12
			PD2-0G7-2G7-SEL	700~2700	1.1	≤0.4	28	0.2	3	30	28x42x12
			PD2-0G8-2G7-SI	800~2700	1.2	≤0.4	25	0.3	5	35	42.4x38.4x14.7
			PD2-0G8-3-SI	800~3000	1.12	≤0.5	20	0.3	5	35	42.4x38.4x14.7
			PD2-0G9-6G5-SI	900~6500	1.2	≤0.5	20	0.3	5	35	53.4x34.6x13
			PD2-0G35-6-SE	350~6000	1.12	≤1.4	26	0.3	3	30	82x38x12
			PD2-0G95-2G15-SI	950~2150	1.12	≤0.5	20	0.3	5	35	42.4x38.4x14.7
			PD2-1G1-1G7-SI	1100~1700	1.12	≤0.5	20	0.3	5	35	42.4x38.4x14.7
			PD2-1G4-6G5-SI	1400~6500	1.2	≤0.5	20	0.2	5	35	36.4x34.6x14.7
			PD2-2-6-SI	2000~6000	1.2	≤0.5	20	0.3	5	35	36.4x34.6x14.7
			PD2-2-8-SE	2000~8000	1.14	≤0.6	26	0.2	3	30	28x28x10
			PD2-2-18-SE	2000~18000	1.14	≤1.0	25	0.3	4	20	47x24x10
			PD2-0G002-0G5-SE	2~500	1.12	≤0.6	26	0.3	3	10	28x28x12.7
			PD2-6-18-SE	6000~18000	1.15	≤0.8	24	0.3	3	20	30x24x10
			PD2-6-26G5-SE	6000~26500	1.12	≤0.6	26	0.3	3	20	28x28x12.7
			PD2-8-12-SE	8000~12000	1.15	≤0.5	26	0.2	3	20	28x28x10
			PD2-0G1-0G5-SE	100~500	1.2	≤1.0	26	0.2	2	20	105x58x12
			PD2-0G4-7G5-SE	400~7500	1.12	≤1.5	26	0.3	3	20	75x28x10
			PD2-0G6-8-SE	600~8000	1.12	≤1.2	26	0.2	3	20	56x30x10
			PD2-1G7-6-SE	1700~6000	1.14	≤0.6	28	0.2	2	30	34x36x12
			PD2-4-8-SE	4000~8000	1.14	≤0.5	28	0.2	3	30	28x28x10
			PD2-5G7-5G9-SE	5700~5900	1.14	≤0.4	28	0.2	2	30	28x28x10
		N Female	PD2-0G1-0G4-NE	100~400	1.14	≤0.5	26	0.2	2	50	132x84x22
			PD2-0G1-0G5-NE	100~500	1.14	≤0.5	26	0.2	2	50	132x84x22
			PD2-0G5-6-NE	500~6000	1.16	≤1.2	26	0.2	3	30	56x50x20
			PD2-0G95-2G15-NE	950~2150	1.11	≤1.11	28	0.2	2	30	46x56x20.5
			PD2-1G1-1G7-NE	1100~1700	1.13	≤0.6	25	0.2	3	30	34x43x20
			PD2-1G6-6-NE	1600~6000	1.13	≤0.6	25	0.2	3	30	34x43x20
			PD2-1G6-6-NE-T	1600~6000	1.13	≤0.6	25	0.2	3	30	34x43x20
			PD2-0G005-1-NE	0.005~1	1.12	≤1.0	26	0.3	3	1	56x34x22
			PD2-0G1-2G2-NE	100~2200	1.12	≤2.2	28	0.2	2	30	110x62x20
			PD2-0G5-1-NE	500~1000	1.14	≤0.4	26	0.2	2	30	96x62x22
			PD2-0G8-2G5-NE	800~2500	1.12	≤0.4	28	0.2	3	50	75x60x18.7
			PD2-2-18-NE	2000~18000	1.12	≤1.5	24	0.3	4	20	44x52x20
		TNC Female	PD2-1G1-1G7-TE	1100~1700	1.11	≤0.4	28	0.2	2	30	46x56x22
			PD2-0G47-0G86-TE	470~860	1.12	≤0.4	26	0.2	2	30	48x46x20
			PD2-0G8-2G5-TE	800~2500	1.12	≤0.6	26	0.2	3	20	50.8x50.8x21
		2.92mm Female	PD2-1-26G5-KE	1000~26500	1.12	≤1.5	22	0.4	5	20	78x26x10
			PD2-1-40-KE	1000~40000	1.12	≤1.8	22	0.4	5	20	78x26x10
			PD2-17-31-KE	17000~31000	1.26	≤1.0	22	0.4	5	20	26x19x10
			PD2-18-40-KE	18000~40000	1.26	≤1.0	22	0.4	5	20	26x19x10
			PD2-2-40-KE	2000~40000	1.12	≤1.0	22	0.4	4	20	26x19x10
			PD2-6-40-KE	6000~40000	1.26	≤1.3	22	0.4	5	20	26x19x10
			PD2-18-24-KE	18000~24000	1.26	≤0.8	24	0.3	3	20	26x19x10
			PD2-18-31-KE	18000~31000	1.26	≤0.8	22	0.4	4	20	26x19x10
			PD2-20-40-KE	20000~40000	1.26	≤1.0	22	0.4	5	20	26x19x10
			PD2-26G5-40-KE	26500~40000	1.26	≤1.0	24	0.4	4	20	26x19x10
			PD2-26-28-KE	26000~28000	1.22	≤0.6	22	0.2	3	20	19x26x10
			PD2-30G5-32G5-KE	30500~32500	1.22	≤0.7	24	0.3	4	20	19x26x10
	Resistive	SMA Female	PD2-DC-3-SE	DC~3000	1.12	≤7.0	5.6	0.3	3	2	28x28x10
			PD2-DC-3-SEY	DC~3000	1.2	≤6.0	6	0.5	-	2	25.4x22.2x16
			PD2-DC-6-SE	DC~6000	1.12	≤7.02	5.6	0.3	3	2	28x28x10
			PD2-DC-12-SE	DC~12000	1.1	≤3.5	18	0.3	3	0.2	19.5x25.4x9.65
			PD2-DC-18-SEY	DC~18000	1.2	≤6	6	-	-	1	28x24.2x12
			PD2-DC-4-SE	DC~4000	1.12	≤7.2	5.6	0.3	3	2	28x28x10
PD2-DC-8-SE			DC~8000	1.12	≤8.2	5.6	0.3	3	2	28x28x10
3	Striline	SMA Female	PD3-0G5-6-SE	500~6000	1.18	≤2.6	25	0.8	8	20	130x50x12
			PD3-2-6-SE	2000~6000	1.14	≤1.0	26	0.5	5	20	66.5x37.5x10
			PD3-2-8-SE	2000~8000	1.14	≤1.0	26	0.5	5	20	66.5x37.5x10
			PD3-2-18-SE	2000~18000	1.24	≤1.5	25	0.6	6	20	70x39x10
			PD3-5-30-SE	5~30	1.13	≤0.8	30	0.3	3	1	60x48x12
			PD3-4-30-SE	4~30	1.13	≤0.8	30	0.3	3	1	60x48x12
			PD3-0G005-0G3-SE	5~300	1.13	≤0.8	30	0.2	2	1	60x48x12
			PD3-0G01-1-SE	10~1000	1.19	≤1.7	30	0.4	6	1	60x48x12
			PD3-0G38-6-SE	380~6000	1.18	≤2.8	26	0.9	8	20	130x50x12
			PD3-0G4-0G6-SE	400~600	1.12	≤0.3	26	0.3	3	50	102x103x14
			PD3-0G4-6-SE	400~6000	1.18	≤2.8	28	0.8	8	20	130x50x12
			PD3-0G5-8-SE	500~8000	1.19	≤2.2	26	1	10	20	160x52x12
			PD3-0G698-3G8-SE	698~3800	1.15	≤1.2	26	0.6	6	50	128x70x14
			PD3-1-8-SE	1000~8000	1.14	≤1.5	25	0.8	8	20	95x44x10
			PD3-1G1-1G7-SE	1100~1700	1.12	≤0.5	26	0.4	4	30	72x72x20
			PD3-2-9-SE	2000~9000	1.16	≤2.2	24	0.6	6	30	66.5x37.5x10
			PD3-6-18-SE	6000~18000	1.18	≤1.2	24	0.6	6	20	38x51x10
			PD3-7G5-9-SE	7500~9000	1.15	≤0.8	26	0.5	5	20	51x38x10
			PD3-8-12-SE	8000~12000	1.15	≤1.0	26	0.5	5	20	51x38x10
			PD3-20-21-SE	20000~21000	1.18	≤0.8	25	1.2	4	20	38x51x10
		N Female	PD3-0G5-6-NE	500~6000	1.18	≤2.8	25	0.8	8	20	130x74x20
			PD3-2G3-2G6-200NI	2300~2600	1.1	≤0.4	26	0.5	5	200	160x160x60
			PD3-0G6-6-NE	600~6000	1.18	≤2.8	25	0.8	8	20	130x74x20
			PD3-0G8-2G5-NE	800~2500	1.12	≤0.6	26	0.3	4	50	81x45x22
			PD3-1G8-6-NE	1800~6000	1.12	≤1.0	26	0.8	6	30	76x70x20
			PD3-2-6-NE	2000~6000	1.16	≤0.8	24	0.5	5	30	76x70x20
	Resistive	SMA Female	PD3-DC-3-SE	DC~3000	1.14	≤9.9	8.9	0.3	3	2	34x45x12.5
			PD3-DC-3-SEY	DC~3000	1.15	≤10.0	9	0.5	10	2	25.4x29.3x16
			PD3-DC-6-SE	DC~6000	1.14	≤10.8	8.9	0.4	4	2	34x45x12.5
4	Striline	SMA Female	PD4-0G4-6-SE	400~6000	1.12	<1.8	28	0.3	4	30	100x62x12
			PD4-0G5-6-SE	500~6000	1.12	<1.8	29	0.3	4	30	100x62x12
			PD4-0G5-6-SI	500~6000	1.25	<1.0	20	0.3	5	35	91.2x66x14.7
			PD4-0G5-8-SE	500~8000	1.12	<2.0	26	0.3	4	20	86x56x10
			PD4-0G5-8-SE3	500~8000	1.15	<1.7	25	0.4	4	20	100x62x12
			PD4-0G5-10-SE	500~10000	1.15	<3.0	26	0.3	4	20	128x54x10
			PD4-0G5-18-SE	500~18000	1.2	<2.5	24	0.8	8	30	163x68x10
			PD4-0G5-26G5-SEL	500~26500	1.28	<5.2	26	0.4	6	20	158.5x56.5x12.7
			PD4-0G6-6-SE	600~6000	1.11	<1.7	28	0.3	4	30	100x62x12
			PD4-0G7-2G7-SE	700~2700	1.14	<0.6	26	0.3	4	30	52x64x12
			PD4-0G8-3-SI	800~3000	1.15	<0.7	20	0.3	5	35	66.4x75x14.7
			PD4-0G95-2G15-SI	950~2150	1.15	<0.7	20	0.3	5	35	66.4x75x14.7
			PD4-1G1-1G7-SI	1100~1700	1.15	<0.5	20	0.3	5	35	66.4x75x14.7
			PD4-2-6-SE	2000~6000	1.15	<0.8	28	0.3	4	30	50x56x10
			PD4-2-8-SE	2000~8000	1.14	<1.0	25	0.3	4	30	50x56x10
			PD4-2-12-SE	2000~12000	1.16	<1.6	24	0.4	5	20	60x69x10
			PD4-2-18-SE	2000~18000	1.25	<2.0	22	0.4	6	20	60x69x10
			PD4-5-1000-SE	0.005~1	1.12	<2.0	26	0.8	6	0.5	70x40x12
			PD4-6-18-SE	6000~18000	1.15	<1.0	26	0.3	5	20	45x50.5x10
			PD4-8-12-SE	8000~12000	1.15	<1.0	24	0.4	5	20	60x54x10
			PD4-0G1-0G52-SE	100~520	1.12	<0.6	28	0.2	3	20	123x186x10
			PD4-0G1-6-SE	100~6000	1.12	<1.0	26	0.3	3	20	70.5x54x10
			PD4-0G38-8-SE	380~8000	1.12	<2.6	26	0.3	4	30	130x58x10
			PD4-0G5-2-SE	500~2000	1.12	<1.0	26	0.3	3	30	76.2x50.8x9.7
			PD4-0G6-18-SE	600~18000	1.2	<2.5	24	0.8	8	30	163x68x10
			PD4-0G7-4-SE	700~4000	1.1	<1.0	28	0.3	3	30	66x66x12
			PD4-0G8-2G7-SE	800~2700	1.12	<0.8	20	0.2	3	30	52x64x12
			PD4-0G9-4-SE	900~4000	1.12	<0.6	26	0.3	3	30	83x66x10
			PD4-1-8-SE	1000~8000	1.12	<1.4	26	0.3	3	20	70.5x56x10
			PD4-2-4-SE	2000~4000	1.12	<0.6	26	0.3	3	30	50x56x10
			PD4-4-12-SE	4000~12000	1.15	<1.2	24	0.2	4	20	60x54x10
			PD4-8-8G5-SE	8000~8500	1.14	<0.6	24	0.3	3	30	36x64x10
			PD4-12-18-SE	12000~18000	1.12	<1.0	22	0.3	5	20	42x52x10
		N Female	PD4-0G5-6-NE	500~6000	1.16	≤2.0	28	0.3	4	30	100x92x20
			PD4-0G7-3-NE	700~3000	-	≤1.0	-	0.3	4	30	101.1x75.1x19.1
			PD4-0G95-2G15-NE	950~2150	-	≤1.0	-	0.3	4	30	101.1x75.1x19.1
			PD4-1G1-1G7-NE	1100~1700	-	≤1.0	-	0.3	4	30	101.1x75.1x19.1
			PD4-0G1-0G5-NE	100~500	1.06	≤1.0	27	0.2	3	50	132x84x22
			PD4-0G35-0G5-NE	350~500	1.12	≤0.4	26	0.2	2	250	210x140x24
			PD4-0G8-2G5-NE	800~2500	1.1	≤0.8	26	0.3	3	30	75.5x101.1x19.1
			PD4-0G95-1G95-NE	950~1950	1.12	≤0.6	26	0.3	3	30	102x72x20
			PD4-2-4-NE	2000~4000	1.12	≤0.8	26	0.3	3	30	49x97x20
			PD4-2-8-NE	2000~8000	1.16	≤1.2	26	0.3	4	30	97x49x20
			PD4-2-18-NE	2000~18000	1.12	≤2.2	24	0.4	6	20	102x60xx20
			PD4-3G4-4G2-NE	3400~4200	1.2	≤1.5	25	0.3	3	30	106x46x22
		2.92mm Female	PD4-17-31-KE	17000~31000	1.26	≤1.6	22	0.4	6	20	52x35x10
			PD4-18-40-KE	18000~40000	1.26	≤1.6	22	0.4	6	20	52x35x10
			PD4-1-40-KE	1000~40000	1.26	≤3.5	22	0.5	8	20	154x52x10
			PD4-2-40-KE	2000~40000	1.26	≤3.0	20	0.5	10	20	52x46x10
			PD4-18-31-KE	18000~31000	1.26	≤1.0	22	0.4	6	20	52x35x10
			PD4-26-28-KE	26000~28000	1.26	≤1.0	24	0.2	5	20	38.1x52.3x10
			PD4-27-31-KE	27000~31000	1.26	≤1.0	22	0.4	5	20	52.3x38.1x10
			PD4-30G5-32G5-KE	30500~32500	1.24	≤1.4	24	0.4	4	20	38.1x52.3x10
	Resistive	SMA Female	PD4-DC-3-SE	DC~3000	1.11	≤14.0	5.6	0.4	4	2	40x64x12.5
			PD4-DC-3-SEY	DC~3000	1.15	≤13.0	12	0.6	12	2	25.4x29.3x16
			PD4-DC-6-SE	DC~6000	1.11	≤14.0	11.6	0.4	4	2	40x64x12.5
		N Female	PD4-DC-6-NE	DC~6000	1.1	≤15.0	6	0.5	5	2	50x100x20
		N Female	PD4-DC-3-NE	DC~3000	1.1	≤14.0	11.5	0.4	4	2	50x100x20
6	Striline	SMA Female	PD6-0G5-6-SE	500~6000	1.13	≤3.0	26	0.8	8	20	150x94x12
			PD6-0G5-8-SE	500~8000	1.19	≤3.5	25	1	10	20	220x94x12
			PD6-0G6-6-SE	600~6000	1.13	≤2.9	26	0.8	8	20	150x94x12
			PD6-2-6-SE	2000~6000	1.14	≤1.2	25	0.5	5	30	88x83x10
			PD6-2-8-SE	2000~8000	1.14	≤1.2	25	0.5	5	30	88x83x10
			PD6-2-18-SE	2000~18000	1.3	≤2.2	18	0.5	5	20	98x82x10
			PD6-0G9-8-SE	900~8000	1.15	≤2.0	25	0.8	8	20	130x80x10
			PD6-1-8-SE	1000~8000	1.15	≤2.0	25	0.8	6	20	130x80x10
			PD6-17-23-SE	17000~23000	1.18	≤3.0	22	0.8	8	20	60x80x10
8	Striline	SMA Female	PD8-0G1-0G4-SE	100~400	1.13	≤2.0	26	0.3	3	30	190x190x12
			PD8-0G1-0G7-SE	100~700	1.13	≤2.0	26	0.3	3	30	190x190x12
			PD8-0G005-1-SE	0.005~1	1.2	≤2.5	26	0.5	10	1	120x56x12
			PD8-0G5-6-SE	500~6000	1.13	≤2.8	26	0.4	5	30	113x115x12
			PD8-0G5-8-SE	500~8000	1.12	≤3.0	26	0.4	5	20	114.5x114x10
			PD8-0G6-6-SE	600~6000	1.12	≤2.7	26	0.4	5	30	113x115x12
			PD8-0G08-4-SE	80~4000	1.15	≤6.6	-	0.3	8	30	332x164x12
			PD8-0G8-2G7-SE	800~2700	1.15	≤0.8	26	0.4	4	30	112x70x12
			PD8-0G8-3-SE	800~3000	1.11	≤1.0	26	0.3	4	30	116x86x14
			PD8-0G95-2G15-SE	950~2150	1.11	≤1.0	26	0.3	4	30	116x86x14
			PD8-1G1-1G7-SE	1100~1700	1.11	≤1.0	26	0.3	4	30	116x86x14
			PD8-2-6-SE	2000~6000	1.14	≤1.5	25	0.4	5	30	63x108x10
			PD8-2-8-SE	2000~8000	1.14	≤1.5	25	0.4	5	30	63x108x10
			PD8-2-10-SE	2000~10000	1.15	≤2.0	24	0.4	5	20	65x110x10
			PD8-2-18-SE	2000~18000	1.16	≤3.0	24	0.5	10	20	148.5x95x10
			PD8-6-18-SE	6000~18000	1.18	≤2.8	22	0.4	5	20	106x78x10
			PD8-8-12-SE	8000~12000	1.18	≤1.4	24	0.4	5	20	57.5x122.5x10
			PD8-0G05-5-SE	50~5000	1.18	≤1.4	-	0.5	5	2	120x60x12
			PD8-0G1-2-SE	100~2000	1.12	≤4.0	25	0.4	4	30	224x220x10
			PD8-0G2-1-SE	200~1000	1.12	≤1.0	26	0.3	4	30	172x138x10
			PD8-0G4-0G47-SE	400~470	1.12	≤0.6	26	0.2	3	100	248x204x16
			PD8-0G4-2-SE	400~2000	1.12	≤4.2	32	0.3	3	30	120x120x10
			PD8-0G5-10-SE	500~10000	1.12	≤1.0	26	0.3	3	30	92x120x12
			PD8-0G7-5-SE	700~5000	1.12	≤3.0	26	0.4	5	30	165x144x16
			PD8-0G8-2G5-SE	800~2500	1.15	≤0.8	26	0.4	4	30	112x70x12
			PD8-1-2-SE	1000~2000	1.12	≤0.8	25	0.3	4	30	68x114x12
			PD8-1-18-SE	1000~18000	1.24	≤4.0	24	0.5	10	20	100x166x10
			PD8-2-18-SE	2000~18000	1.16	≤3.0	24	0.5	10	20	148.5x95x10
			PD8-3G9-5G9-SE	3900~5900	1.14	≤1.0	25	0.4	5	30	63x108x10
			PD8-4-12-SE	4000~12000	1.2	≤1.5	24	0.2	4	20	70x112x10
			PD8-9-11-SE	9000~11000	1.18	≤1.0	26	0.4	5	20	57.5x122.5x10
			PD8-15-18-SE	15000~18000	1.15	≤2.0	24	0.4	6	20	112x70x10
		N Female	PD8-0G05-0G95-NE	2000~8000	1.18	≤3.6	26	0.4	5	1	58x200x22
			PD8-0G4-0G47-NE	400~470	1.12	≤0.8	26	0.2	3	200	248x204x22
			PD8-0G5-1-NE	500~1000	1.14	≤0.8	26	0.3	3	30	120x206x20
			PD8-0G6-6-NE	600~6000	1.12	≤2.5	26	0.3	5	30	200x96x20
			PD8-0G69-2G7-NE	690~2700	1.14	≤1.8	26	0.3	4	30	196x88x20
			PD8-0G8-2G5-NE	800~2500	1.15	≤1.4	26	0.4	4	30	196x88x20
			PD8-0G95-2G15-NE	950~2150	1.14	≤1.2	26	0.3	4	30	196x88x20
			PD8-3G4-4G2-NE	3400~4200	1.13	≤3.0	28	0.3	4	30	208x62x22
			PD8-4-7-NE	4000~7000	1.14	≤1.0	26	0.3	4	30	198x52x20
			PD8-8-12-NE	8000~12000	1.12	≤1.8	24	0.4	5	20	196x55x20
		2.92mm Female	PD8-17-31-KE	17000~31000	1.26	≤1.6	24	0.5	6	20	104x40x10
			PD8-18-40-KE	18000~40000	1.26	≤3.2	22	0.5	8	20	104x40x10
			PD8-25G5-26G5-KE	25500~26500	1.26	≤1.6	24	0.5	8	20	104x40x10
	Resistive	SMA Female	PD8-DC-3-SE	DC~3000	1.16	≤19.5	5.9	0.4	4	2	120x60x12
			PD8-DC-3-SEY	DC~3000	1.3	≤18.0	18	1	-	2	43.2x45.5x16
			PD8-DC-6-SE	DC~6000	1.18	≤22.0	6	0.8	5	2	120x60x12
			PD8-DC-6-SEY	DC~6000	1.5	≤24.0	18	1.5	-	2	43.2x45.5x16
			PD8-DC-2-SE	DC~2000	1.08	≤18.5	17.5	0.3	3	2	120x60x12
		N Female	PD8-0G05-0G95-NE	2000~8000	1.18	≤3.6	26	0.4	5	1	58x200x22
			PD8-0G4-0G47-NE	400~470	1.12	≤0.8	26	0.2	3	200	248x204x22
			PD8-0G5-1-NE	500~1000	1.14	≤0.8	26	0.3	3	30	120x206x20
			PD8-0G6-6-NE	600~6000	1.12	≤2.5	26	0.3	5	30	200x96x20
			PD8-0G69-2G7-NE	690~2700	1.14	≤1.8	26	0.3	4	30	196x88x20
			PD8-0G8-2G5-NE	800~2500	1.15	≤1.4	26	0.4	4	30	196x88x20
			PD8-0G95-2G15-NE	950~2150	1.14	≤1.2	26	0.3	4	30	196x88x20
			PD8-3G4-4G2-NE	3400~4200	1.13	≤3.0	28	0.3	4	30	208x62x22
			PD8-4-7-NE	4000~7000	1.14	≤1.0	26	0.3	4	30	198x52x20
			PD8-8-12-NE	8000~12000	1.12	≤1.8	24	0.4	5	20	196x55x20
10	Resistive	SMA Female	PD10-DC-3-SER	DC~3000	1.18	≤23.5	15	0.8	15	2	85x148x12
12	Striline	SMA Female	PD12-2-8-SE	2000~8000	1.18	≤1.6	25	0.6	3	30	156x92x10
			PD12-6-18-SE	6000~18000	1.25	≤2.0	22	0.8	8	20	76x154x10
			PD12-2-8-SE	2000~8000	1.18	≤1.6	25	0.6	6	30	156x92x10
			PD12-8-12-SE	8000~12000	1.2	≤1.5	20	0.6	8	20	76x154x10
16	Striline	SMA Female	PD16-0G5-6-SE	500~6000	1.13	≤3.8	28	0.4	8	30	140x236x12
			PD16-0G5-8-SE	500~8000	1.13	≤4.5	26	0.4	8	20	232x150x10
			PD16-0G8-3-SE	800~3000	1.13	≤1.4	26	0.3	5	30	212x104x12
			PD16-2-6-SE	2000~6000	1.14	≤1.6	25	0.4	5	30	80x218x12
			PD16-2-8-SE	2000~8000	1.14	≤2.8	25	0.4	6	30	218x100x12
			PD16-4-20-SE	4000~20000	1.25	≤2.8	26	0.6	6	20	50x224x10
			PD16-6-18-SE	6000~18000	1.25	≤1.8	26	0.6	6	20	60x212x10
			PD16-8-12-SE	8000~12000	1.18	≤1.6	24	0.4	5	20	212x85x10
			PD16-1G5-1G7-SE	1500~1700	1.12	≤0.6	26	0.3	3	30	214x118x10
32	Striline	SMA Female	PD32-0G8-2G7-SE	800~2700	1.15	≤1.8	26	0.5	8	30	430x110x14
			PD32-0G2-2G7-SE	200~2700	1.15	≤5.0	26	0.5	10	30	280x462x12
			PD32-0G22-0G7-SE	220~700	1.12	≤3.5	26	0.5	12	10	80x460x12
			PD32-0G95-1G95-SE	950~1950	1.12	≤1.5	26	0.4	5	30	432x150x14
			PD32-1G4-2G7-SE	1400~2700	1.12	≤1.6	26	0.4	8	30	78x430x12
			PD32-9G2-9G8-SE	9200~9800	1.16	≤2.0	24	0.4	8	20	637x100x12
			PD32-12-18-SE	12000~18000	1.18	≤3.0	22	0.5	10	20	420x92x10
			PD32-15-18-SE	15000~18000	1.16	≤3.0	22	0.5	10	20	420x95x10
			PD32-16G6-17G4-SE	16600~17400	1.16	≤2.8	22	0.5	10	20	420x90x10

成人在线精品-成人在线精品视频-成人在线免费-成人在线免费播放-成人在线免费观看视频

品牌：LEADWAY微波產(chǎn)品
