CINCON超寬輸入范圍DC-DC轉換器
發布時間：2020-10-27 16:06:37 瀏覽：1962

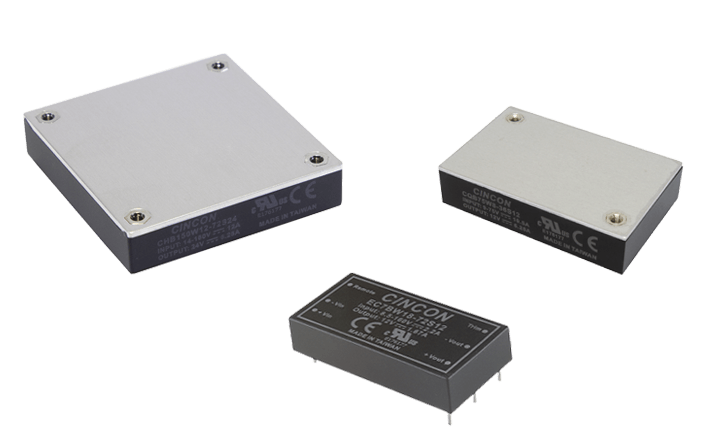

CINCON超寬輸入范圍的DC-DC轉換器產品類別從8：1的輸入范圍到18：1的超寬輸入范圍，這是世界上最大的輸入范圍。提供了2"x1"、1/4磚塊、半磚和其他軟件包。
CINCON超寬輸入范圍的DC-DC變換器適用于工業、鐵路、電信、國防、航運和物聯網等領域。
深圳市立維創展科技有限公司是CINCON電源模塊的分銷商，提供CINCON電源模塊直流電、交直流電源、LED電源等，原產品進口，質量保證，價格優勢，歡迎咨詢。
詳情了解CINCON電源請點擊：http://www.nfda.cn
8:1 Input Range
| Model | Power | Input Voltage | Output Voltage | Features | Dimensions (Inch) |
NEW | CQB50W8 | 50W | 9~75V | 12V, 15V, 24V, 28V, 48V | 3KVac Isolation
UL62368 & CB
EN45545-2
EN50155 Compliant | 2.28×1.45x0.50
(Quarter Brick) |
NEW | CQB75W8 | 75W | 9~75V | 12V, 15V, 24V, 28V, 48V | 3KVac Isolation
UL62368 & CB
EN45545-2
EN50155 Compliant | 2.28×1.45x0.50
(Quarter Brick) |
| CHB150W8 | 150W | 9~75V | 12V, 15V, 24V, 28V, 48V | 1.5KVDC Isolation
UL60950-1 | 2.28×2.40x0.50
(Half Brick) |
12:1 Input Range
| Model | Power | Input Voltage | Output Voltage | Features | Dimensions (Inch) |
NEW | CQB50W12-72SXX-CMFC(D) | 30-50W | 14 -160V | 5V, 12V, 24V, 48V | Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant | 4.60x2.40x1.26
(CMFC)
4.60x2.49x1.35
(CMFD) |
| CQB50W12 | 50W | 14~160V | 5V, 12V, 24V, 48V | 3KVdc Isolation
UL60950-1 & CB
EN45545-2
EN50155 Compliant | 2.28×1.45x0.50
(Quarter Brick) |
NEW | CHB150W12 | 150W | 14~160V | 12V, 15V, 24V, 48V, 5V | 3KVac Isolation
UL62368-1 & CB
EN45545-2
EN50155 Compliant | 2.28×2.40x0.50
(Half Brick) |
NEW | CHB200W12 | 200W | 14~160V | 12V, 15V, 24V, 48V | 3KVac Isolation
UL62368-1 & CB
EN45545-2
EN50155 Compliant | 2.28×2.40x0.50
(Half Brick) |
18:1 Input Range
| Model | Power | Input Voltage | Output Voltage | Features | Dimensions (Inch) |
NEW | EC7BW18 | 20W | 8.5~160V | 12V, 15V, 5V, ±12V, ±15V, ±24V | 3KVac Isolation
UL62368-1
EN45545-2
EN50155 Compliant | 2.00x1.00x0.40(DIP) |
