VICOR電源HAM?AC諧波衰減模塊(PFC前端)
發布時間:2021-01-27 17:10:08 瀏覽:1918

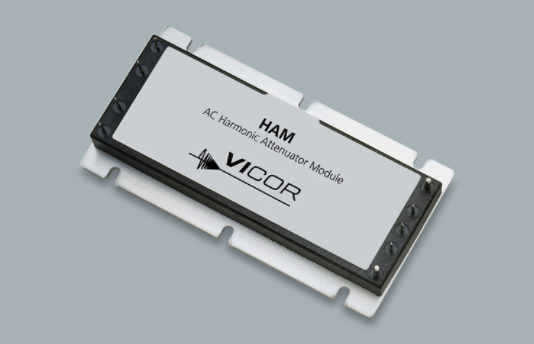

VICOR電源HAM模塊是一個全波整流器,充分利用特有的高頻率零電流電源開關(ZCS)升壓轉換器,具備多達675W的工作功率,封裝規格僅有4.6“x2.4”x0.5“(116.9x61x12.7mm)。高升壓HAM和我們的V375,VI-26x或VI-J6xDC-DC轉換器的組成,為高度密集,開關電源提供了開關電源傳送基本功能,以大于0.99的功率因素滿足了EN61000-3-2的諧波電流的含量需求。
特性與優勢
0.99功率因素
EN61000-3-2諧波的含量
通用輸入:85-264Vac
過載保護
深圳市立維創展科技是VICOR電源模塊的代理經銷商,主要提供DC-DC、AC-DC電源模塊,隔離、非隔離電源模塊轉換器等,立維創展致力為客戶提供高品質、高質量、價格公正的微波元器件產品,歡迎咨詢.
Part Number | 產品類型 | 產品等級 | 輸出功率 (W) | 符合RoHS |
VI-HAMD-ML | Driver HAM for use with the BAMD | –55°C to +85°C | 675 | No |
VI-HAMD-IL | Driver HAM for use with the BAMD | –40°C to +85°C | 675 | No |
VI-HAMD-EL | Driver HAM for use with the BAMD | –10°C to +85°C | 675 | No |
VI-HAMD-CL | Driver HAM for use with the BAMD | –25°C to +85°C | 675 | No |
VI-HAM-ML | Driver HAM | –55°C to +85°C | 675 | No |
VI-HAM-IL | Driver HAM | –40°C to +85°C | 675 | No |
VI-HAM-EL | Driver HAM | –10°C to +85°C | 675 | No |
VI-HAM-CL | Driver HAM | –25°C to +85°C | 675 | No |
VI-BAMD-ML | Booster HAM | –55°C to +85°C | 675 | No |
VI-BAMD-IL | Booster HAM | –40°C to +85°C | 675 | No |
VI-BAMD-EL | Booster HAM | –10°C to +85°C | 675 | No |
VI-BAMD-CL | Booster HAM | –25°C to +85°C | 675 | No |
VE-HAMD-ML | Driver HAM for use with the BAMD | –55°C to +85°C | 675 | Yes |
VE-HAMD-IL | Driver HAM for use with the BAMD | –40°C to +85°C | 675 | Yes |
VE-HAMD-EL | Driver HAM for use with the BAMD | –10°C to +85°C | 675 | Yes |
VE-HAMD-CL | Driver HAM for use with the BAMD | –25°C to +85°C | 675 | Yes |
VE-HAM-ML | Driver HAM | –55°C to +85°C | 675 | Yes |
VE-HAM-IL | Driver HAM | –40°C to +85°C | 675 | Yes |
VE-HAM-EL | Driver HAM | –10°C to +85°C | 675 | Yes |
VE-HAM-CL | Driver HAM | –25°C to +85°C | 675 | Yes |
VE-BAMD-ML | Booster HAM | –55°C to +85°C | 675 | Yes |
VE-BAMD-IL | Booster HAM | –40°C to +85°C | 675 | Yes |
VE-BAMD-EL | Booster HAM | –10°C to +85°C | 675 | Yes |
VE-BAMD-CL | Booster HAM | –25°C to +85°C | 675 | Yes |
