ARCH工業用模塊電源AIC
發布時間：2021-07-09 16:57:42 瀏覽：1684
ARCH是臺灣著名的電源模塊電源制造商。ARCH主要提供大功率AC-DC和DC-DC電源模塊，這些模塊電源經常使用于系統前端。目前，ARCH的電源模塊用戶涵蓋顯示器、儀器儀表設備、醫療設備、機械自動化、醫療、城市軌道交通等各個領域，ARCH的電源模塊具備大功率、小體積的特點。

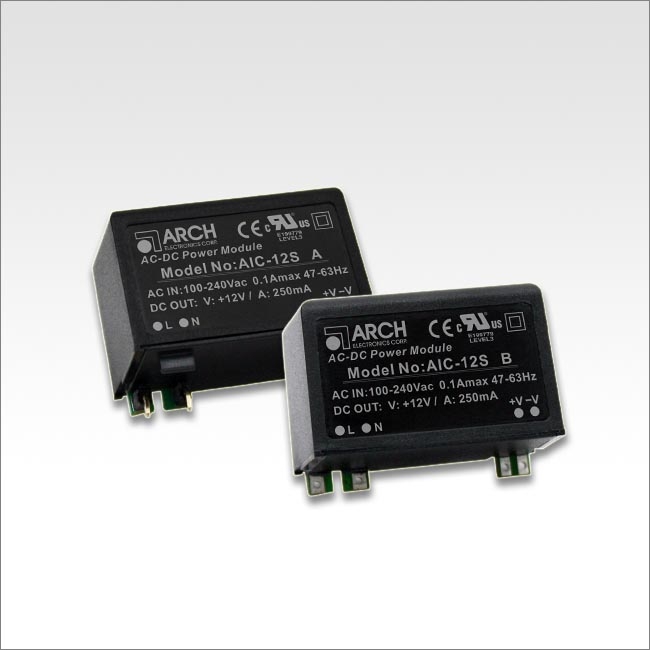

ARCH工業模塊電源模塊AIC是一種安裝在PCB上的開關電源模塊。模塊電源具備完全密封性的塑料外殼和低紋波和噪音，通用性輸入范圍為90-264VAC，47-63Hz，超緊湊型規格尺寸為1.41x0.75x0.86英寸，最大空載功率<；3W，隔離等級II，具備CE和UL安全認證。
除非另有要求，否則所有的標準規范在標稱輸入電流電壓、滿載和預熱后25°C時合理有效。深圳市立維創展科技授權代理ARCH電源模塊產品，提供高效率，高品質與小尺寸特性的產品滿足市場趨勢和需求，并提供技術支持服務，歡迎咨詢。
詳情了解ARCH(翊嘉)電源模塊請點擊：http://www.nfda.cn/brand/38.html
或咨詢我們的銷售工程師：0755-83050846 QQ：3312069749
Input Specifications / 輸入規格 |
Voltage | 90~264 VAC or 120~370 VDC |
|
Frequency | 47-63 Hz |
|
Inrush Current (<500us) | 20 A (115 VAC) /
50 A (230 VAC) | (max.) |
Leakage Current | 0.25 mA | (max.) |
|
|
|
Output Specifications / 輸出規格 |
Power | 3 | (max.) |
Voltage | 3.3, 5, 9, 12, 15, 24 |
|
Voltage Accuracy
(Full Load and Nominal Vin) | ±10% |
|
Minimum Load | 0% (at Full Load) |
|
Line Regulation
(LL to HL at Full Load) | 3.3S:±5%
---------------------------------
others:±2% | (typ.) |
Load Regulation
(0% to 100% at Full Load) | 3.3S:±5%
---------------------------------
others:±2% | (typ.) |
Ripple & Noise | 3.3S:<250mV (Vp-p)
---------------------------------
5S:<200mV (Vp-p)
---------------------------------
9S:<150mV (Vp-p)
---------------------------------
12S,15S,24S:<100mV (Vp-p) | (max.) |
Protection / 保護規格 |
Over Power Protection | Hiccup technique, auto-recovery |
Over Voltage Protection | Zener diode clamp |
Short Circuit Protection | Hiccup mode,
indefinite (automatic recovery) |
Environment Specification / 環境規格 |
Operating Temperature | -40 °C to +85 °C |
|
Storage Temperature | -40 °C to +85 °C |
|
Temperature Coefficient | ±0.02% / °C |
Humidity | 95% RH |
|
|
|
|
SAFETY & EMC |
Isolation Voltage
(Input to Output) | 3750 VAC |
|
Agency Approvals | UL / IEC / EN 60950-1 |
|
EMI
(Conducted & Radiated Emission) | EN 55032 class B |
|
EMS
(Noise Immunity) | EN 55024 |
|
|
|
|
Others / 其他 |
Dimensions
(Tolerance ±0.5mm) | 35.7 x 19.0 x 22.0 mm
1.41 x 0.75 x 0.86 inches |
Weight | 19.9 g |
Case Material | Plastic resin with Fiberglass
(flammability to UL 94V-0) |
Cooling Method | Free air convection |
|
