?DELTA DC-DC模塊電源50~100W

發布時間：2024-03-06 17:17:44 瀏覽：987

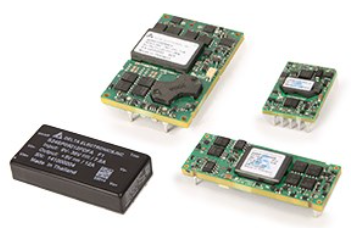

DELTA DC-DC模塊電源為額定功率50~100W的隔離型電源模塊，適用于多種輸入電壓范圍的應用，具備 2"x1", 1/16磚、1/8磚、1/2磚等不同尺寸規格。DELTA 憑借自己的設計創意和技術，一直致力于為客戶提供高效化、高功率密度、高可靠性的電源模塊，可以滿足全球性網絡通訊、數據中心的消費需求。

深圳市立維創展科技有限公司授權代理銷售臺達元器件產品，備有大量現貨庫存。歡迎咨詢。

9-36Vin

Part Number	Vin Range (VDC)	Vout Nominal (VDC)	lout (A)	Power (W)	Eff (%)	ISO (kV)	Package	LxWxH (mm)
S24SP05012	9~36	5	12	60	92.4	1.5	2"x1"	50.8x25.4x10.5
S24SP12005	9~36	12	5	60	92.8	1.5	2"x1"	50.8x25.4x10.5
S24SP15004	9~36	15	4	60	93.3	1.5	2"x1"	50.8x25.4x10.5
S24SP24003	9~36	24	2.5	60	93	1.5	2"x1"	50.8x25.4x10.5

18-75Vin

Part Number	Vin Range (VDC)	Vout Nominal (VDC)	lout (A)	Power (W)	Eff (%)	ISO (kV)	Package	LxWxH (mm)
E36SR05015	18~75	5	15	75	89	2.25	1/8 brick	58.4x22.8x9.2
E36SR3R320	18~75	3.3	20	66	88	2.25	1/8 brick	58.4x22.8x9.2
V36SE12005	18~75	12	5	60	88	2.25	1/16 brick	33x22.8x8.8

36-75Vin

Part Number	Vin Range (VDC)	Vout Nominal (VDC)	lout (A)	Power (W)	Eff (%)	ISO (kV)	Package	LxWxH (mm)
V48SH1R830	36~75	1.8	30	54	89	1.5	1/16 brick	33x22.8x9.5
V48SH1R840	36~75	1.8	40	72	88.5	1.5	1/16 brick	33x22.8x9.5
E48SC3R320	36~75	3.3	20	66	91	2.25	1/8 brick	58.4x22.8x9
V48SC3R320	36~75	3.3	20	66	91	1.5	1/16 brick	33x22.8x9.5
E48SC3R325	36~75	3.3	25	82.5	91	1.5	1/8 brick	58.4x22.8x9
V48SC3R325	36~75	3.3	25	82.5	91	1.5	1/16 brick	33x22.8x9.5
V48SH3R325	36~75	3.3	25	82.5	91	1.5	1/16 brick	33x22.8x9.5
E48SH3R330	36~75	3.3	30	99	92	2.25	1/8 brick	58.4x22.8x9.5
V48SH3R330	36~75	3.3	30	99	91	1.5	1/16 brick	33x22.8x9.5
E48SH05020	36~75	5	20	100	90	2.25	1/8 brick	58.4x22.8x9.5
V48SC05020	36~75	5	20	100	91	1.5	1/16 brick	33x22.8x9.5
V48SH05020	36~75	5	20	100	91.5	1.5	1/16 brick	33x22.8x9.5
E48SC05012	36~75	5	12	60	91.5	1.5	1/8 brick	58.4x22.8x9
V48SC05013	36~75	5	13	65	91.5	1.5	1/16 brick	33x22.8x9.5
E48SC05015	36~75	5	15	75	91	1.5	1/8 brick	58.4x22.8x9
V48SC05017	36~75	5	17	85	91.5	1.5	1/16 brick	33x22.8x9.5
V48SH05017	36~75	5	17	85	91.5	1.5	1/16 brick	33x22.8x9.5
E48SC12005	36~75	12	5	60	92	2.25	1/8 brick	58.4x22.8x8.4
V48SC12007	36~75	12	7.5	90	92	1.5	1/16 brick	33x22.8x9.5
E48SC12008	36~75	12	8	96	92	2.25	1/8 brick	58.4x22.8x8.4
V48SC12008	36~75	12	8.3	99.6	92	1.5	1/16 brick	33x22.8x9.5
Q48SA54001	36~75	54	1.5	81	92	1.5	1/4 brick	57.9x36.8x9.8
V48SC06511	36~75	6.5	11	70	91	1.5	1/16 brick	33x22.8x9.5

36-60Vin

Part Number	Vin Range (VDC)	Vout Nominal (VDC)	lout (A)	Power (W)	Eff (%)	ISO (kV)	Package	LxWxH (mm)
V48SD05012	36~60	5	12	60	93.2	2.25	1/16 brick	33x22.8x12.2
V48SD12005	36~60	12	5	60	92.2	2.25	1/16 brick	33x22.8x12.2
