EC3A-E系列隔離式DC-DC轉換器CINCON

發布時間：2024-09-19 09:16:19 瀏覽：4915

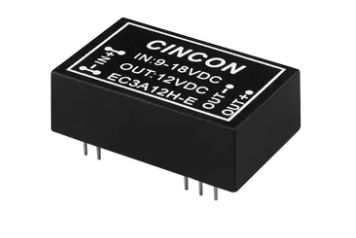

EC3A-E系列隔離式DC-DC轉換器CINCON

　　CINCON的EC3A-E系列隔離式DC-DC轉換器是一款性能可靠的轉換器，具有以下主要特點：

　　主要特點：

　　3W隔離輸出

　　24針DIP封裝

　　效率高達78%

　　2:1輸入范圍

　　穩壓輸出

　　具有Raspberry Pi接口

　　持續短路保護

　　符合EN55032 Class A標準

　　無鉭電容設計

　　寬工作溫度范圍：-40°C到+85°C

　　通過UL60950-1和IEC/EN/UL62368-1認證

　　技術規格：

　　1. 輸入電壓范圍：

　　5V型號：4.5-5.9V

　　12V型號：9-18V

　　24V型號：18-36V

　　48V型號：36-72V

　　2. 輸出電壓和電流：

　　可提供多種輸出電壓和電流組合，如5V、12V、15V、±5V、±12V、±15V等。

　　輸出電流范圍從100mA到600mA不等，具體取決于不同的型號。

　　3. 效率：根據不同型號，轉換器的效率在72%至87%之間。

　　4. 隔離電壓：

　　標準型號：500 VDC

　　帶“H”后綴型號：3000 VDC

　　5. 工作溫度：支持-40°C到+85°C的工作溫度，適用于惡劣的工業環境。

　　6. 短路保護：具有持續的短路保護功能，防止輸出端短路導致的設備損壞。

　　7. 隔離電阻：1.5K VDC(標準型號)，加強電氣隔離，確保設備安全。

　　8. 封裝：提供標準DIP封裝和SMD封裝，尺寸小巧，便于PCB安裝。

　　典型應用：

　　EC3A-E系列隔離式DC-DC轉換器適用于工業自動化、通信設備、儀器儀表、分布式電源系統等領域，特別是需要高可靠性和寬輸入電壓范圍的應用場景。

　　型號：

Part Number	Input Voltage	Output Voltage	Output Current	No load Input Current	Efficiency (%)	I/O Isolation Voltage	Package
EC3A23S-E	18~36V	15V	0.2A	7.5mA	86	500VDC	SMD24
EC3A27HMS-E	18~36V	3.3V	0.6A	5mA	78	1500VDC	SMD24
EC3A26HMS-E	18~36V	±15V	±0.1A	10mA	86	1500VDC	SMD24
EC3A25HMS-E	18~36V	±12V	±0.125A	10mA	85	1500VDC	SMD24
EC3A24HMS-E	18~36V	±5V	±0.3A	7.5mA	82	1500VDC	SMD24
EC3A23HMS-E	18~36V	15V	0.2A	7.5mA	86	1500VDC	SMD24
EC3A22HMS-E	18~36V	12V	0.25A	7.5mA	86	1500VDC	SMD24
EC3A21HMS-E	18~36V	5V	0.6A	7.5mA	82	1500VDC	SMD24
EC3A21S-E	18~36V	5V	0.6A	7.5mA	82	500VDC	SMD24
EC3A22S-E	18~36V	12V	0.25A	7.5mA	86	500VDC	SMD24
EC3A24S-E	18~36V	±5V	±0.3A	7.5mA	82	500VDC	SMD24
EC3A25S-E	18~36V	±12V	±0.125A	10mA	85	500VDC	SMD24
EC3A26S-E	18~36V	±15V	±0.1A	10mA	86	500VDC	SMD24
EC3A23HS-E	18~36V	15V	0.2A	7.5mA	86	3000VDC	SMD24
EC3A24HS-E	18~36V	±5V	±0.3A	7.5mA	82	3000VDC	SMD24
EC3A25HS-E	18~36V	±12V	±0.125A	10mA	85	3000VDC	SMD24
EC3A26HS-E	18~36V	±15V	±0.1A	10mA	86	3000VDC	SMD24
EC3A27HS-E	18~36V	3.3V	0.6A	5mA	78	3000VDC	SMD24
EC3A22HS-E	18~36V	12V	0.25A	7.5mA	86	3000VDC	SMD24
EC3A27S-E	18~36V	3.3V	0.6A	5mA	78	500VDC	SMD24
EC3A21-E	18~36V	5V	0.6A	7.5mA	82	500VDC	DIP24
EC3A22-E	18~36V	12V	0.25A	7.5mA	86	500VDC	DIP24
EC3A23-E	18~36V	15V	0.2A	7.5mA	86	500VDC	DIP24
EC3A24-E	18~36V	±5V	±0.3A	7.5mA	82	500VDC	DIP24
EC3A25-E	18~36V	±12V	±0.125A	10mA	85	500VDC	DIP24
EC3A26-E	18~36V	±15V	±0.1A	10mA	86	500VDC	DIP24
EC3A27-E	18~36V	3.3V	0.6A	5mA	78	500VDC	DIP24
EC3A21M-E	18~36V	5V	0.6A	7.5mA	82	500VDC	DIP24
EC3A22M-E	18~36V	12V	0.25A	7.5mA	86	500VDC	DIP24
EC3A23M-E	18~36V	15V	0.2A	7.5mA	86	500VDC	DIP24
EC3A24M-E	18~36V	±5V	±0.3A	7.5mA	82	500VDC	DIP24
EC3A25M-E	18~36V	±12V	±0.125A	10mA	85	500VDC	DIP24
EC3A26M-E	18~36V	±15V	±0.1A	10mA	86	500VDC	DIP24
EC3A27M-E	18~36V	3.3V	0.6A	5mA	78	500VDC	DIP24
EC3A21H-E	18~36V	5V	0.6A	7.5mA	82	3000VDC	DIP24
EC3A22H-E	18~36V	12V	0.25A	7.5mA	86	3000VDC	DIP24
EC3A23H-E	18~36V	15V	0.2A	7.5mA	86	3000VDC	DIP24
EC3A24H-E	18~36V	±5V	±0.3A	7.5mA	82	3000VDC	DIP24
EC3A25H-E	18~36V	±12V	±0.125A	10mA	85	3000VDC	DIP24
EC3A26H-E	18~36V	±15V	±0.1A	10mA	86	3000VDC	DIP24
EC3A27H-E	18~36V	3.3V	0.6A	5mA	78	3000VDC	DIP24
EC3A21HM-E	18~36V	5V	0.6A	7.5mA	82	1500VDC	DIP24
EC3A22HM-E	18~36V	12V	0.25A	7.5mA	86	1500VDC	DIP24
EC3A23HM-E	18~36V	15V	0.2A	7.5mA	86	1500VDC	DIP24
EC3A24HM-E	18~36V	±5V	±0.3A	7.5mA	82	1500VDC	DIP24
EC3A25HM-E	18~36V	±12V	±0.125A	10mA	85	1500VDC	DIP24
EC3A26HM-E	18~36V	±15V	±0.1A	10mA	86	1500VDC	DIP24
EC3A27HM-E	18~36V	3.3V	0.6A	5mA	78	1500VDC	DIP24
EC3A21MS-E	18~36V	5V	0.6A	7.5mA	82	500VDC	SMD24
EC3A22MS-E	18~36V	12V	0.25A	7.5mA	86	500VDC	SMD24
EC3A23MS-E	18~36V	15V	0.2A	7.5mA	86	500VDC	SMD24
EC3A24MS-E	18~36V	±5V	±0.3A	7.5mA	82	500VDC	SMD24
EC3A25MS-E	18~36V	±12V	±0.125A	10mA	85	500VDC	SMD24
EC3A26MS-E	18~36V	±15V	±0.1A	10mA	86	500VDC	SMD24
EC3A27MS-E	18~36V	3.3V	0.6A	5mA	78	500VDC	SMD24
EC3A21HS-E	18~36V	5V	0.6A	7.5mA	82	3000VDC	SMD24
EC3A31-E	36~72V	5V	0.6A	3mA	84	500VDC	DIP24
EC3A32-E	36~72V	12V	0.25A	3mA	86	500VDC	DIP24
EC3A33-E	36~72V	15V	0.2A	5mA	86	500VDC	DIP24
EC3A34-E	36~72V	±5V	±0.3A	5mA	85	500VDC	DIP24
EC3A35-E	36~72V	±12V	±0.125A	5mA	87	500VDC	DIP24
EC3A36-E	36~72V	±15V	±0.1A	5mA	87	500VDC	DIP24
EC3A37-E	36~72V	3.3V	0.6A	3mA	79	500VDC	DIP24
EC3A31M-E	36~72V	5V	0.6A	3mA	84	500VDC	DIP24
EC3A32M-E	36~72V	12V	0.25A	3mA	86	500VDC	DIP24
EC3A33M-E	36~72V	15V	0.2A	5mA	86	500VDC	DIP24
EC3A34M-E	36~72V	±5V	±0.3A	5mA	85	500VDC	DIP24
EC3A35M-E	36~72V	±12V	±0.125A	5mA	87	500VDC	DIP24
EC3A36M-E	36~72V	±15V	±0.1A	5mA	87	500VDC	DIP24
EC3A37M-E	36~72V	3.3V	0.6A	3mA	79	500VDC	DIP24
EC3A31H-E	36~72V	5V	0.6A	3mA	84	3000VDC	DIP24
EC3A32H-E	36~72V	12V	0.25A	3mA	86	3000VDC	DIP24
EC3A33H-E	36~72V	15V	0.2A	5mA	86	3000VDC	DIP24
EC3A34H-E	36~72V	±5V	±0.3A	5mA	85	3000VDC	DIP24
EC3A35H-E	36~72V	±12V	±0.125A	5mA	87	3000VDC	DIP24
EC3A36H-E	36~72V	±15V	±0.1A	5mA	87	3000VDC	DIP24
EC3A37H-E	36~72V	3.3V	0.6A	3mA	79	3000VDC	DIP24
EC3A31HM-E	36~72V	5V	0.6A	3mA	84	1500VDC	DIP24
EC3A32HM-E	36~72V	12V	0.25A	3mA	86	1500VDC	DIP24
EC3A33HM-E	36~72V	15V	0.2A	5mA	86	1500VDC	DIP24
EC3A34HM-E	36~72V	±5V	±0.3A	5mA	85	1500VDC	DIP24
EC3A35HM-E	36~72V	±12V	±0.125A	5mA	87	1500VDC	DIP24
EC3A36HM-E	36~72V	±15V	±0.1A	5mA	87	1500VDC	DIP24
EC3A37HM-E	36~72V	3.3V	0.6A	3mA	79	1500VDC	DIP24
EC3A31MS-E	36~72V	5V	0.6A	3mA	84	500VDC	SMD24
EC3A32MS-E	36~72V	12V	0.25A	3mA	86	500VDC	SMD24
EC3A33MS-E	36~72V	15V	0.2A	5mA	86	500VDC	SMD24
EC3A34MS-E	36~72V	±5V	±0.3A	5mA	85	500VDC	SMD24
EC3A35MS-E	36~72V	±12V	±0.125A	5mA	87	500VDC	SMD24
EC3A36MS-E	36~72V	±15V	±0.1A	5mA	87	500VDC	SMD24
EC3A37MS-E	36~72V	3.3V	0.6A	3mA	79	500VDC	SMD24
EC3A34HMS-E	36~72V	±5V	±0.3A	5mA	85	1500VDC	SMD24
EC3A36S-E	36~72V	±15V	±0.1A	5mA	87	500VDC	SMD24
EC3A31HMS-E	36~72V	5V	0.6A	3mA	84	1500VDC	SMD24
EC3A32HMS-E	36~72V	12V	0.25A	3mA	86	1500VDC	SMD24
EC3A33HMS-E	36~72V	15V	0.2A	5mA	86	1500VDC	SMD24
EC3A35HMS-E	36~72V	±12V	±0.125A	5mA	87	1500VDC	SMD24
EC3A36HMS-E	36~72V	±15V	±0.1A	5mA	87	1500VDC	SMD24
EC3A37HMS-E	36~72V	3.3V	0.6A	3mA	79	1500VDC	SMD24
EC3A35S-E	36~72V	±12V	±0.125A	5mA	87	500VDC	SMD24
EC3A34S-E	36~72V	±5V	±0.3A	5mA	85	500VDC	SMD24
EC3A37S-E	36~72V	3.3V	0.6A	3mA	79	500VDC	SMD24
EC3A33S-E	36~72V	15V	0.2A	5mA	86	500VDC	SMD24
EC3A32S-E	36~72V	12V	0.25A	3mA	86	500VDC	SMD24
EC3A31S-E	36~72V	5V	0.6A	3mA	84	500VDC	SMD24
EC3A31HS-E	36~72V	5V	0.6A	3mA	84	3000VDC	SMD24
EC3A32HS-E	36~72V	12V	0.25A	3mA	86	3000VDC	SMD24
EC3A33HS-E	36~72V	15V	0.2A	5mA	86	3000VDC	SMD24
EC3A34HS-E	36~72V	±5V	±0.3A	5mA	85	3000VDC	SMD24
EC3A35HS-E	36~72V	±12V	±0.125A	5mA	87	3000VDC	SMD24
EC3A36HS-E	36~72V	±15V	±0.1A	5mA	87	3000VDC	SMD24
EC3A37HS-E	36~72V	3.3V	0.6A	3mA	79	3000VDC	SMD24
EC3A07HMS-E	4.5~9V	3.3V	0.6A	15mA	72	1500VDC	SMD24
EC3A06HMS-E	4.5~9V	±15V	±0.1A	25mA	80	1500VDC	SMD24
EC3A05HMS-E	4.5~9V	±12V	±0.125A	25mA	80	1500VDC	SMD24
EC3A04HMS-E	4.5~9V	±5V	±0.3A	25mA	77	1500VDC	SMD24
EC3A03HMS-E	4.5~9V	15V	0.2A	15mA	80	1500VDC	SMD24
EC3A02HMS-E	4.5~9V	12V	0.25A	15mA	80	1500VDC	SMD24
EC3A01HMS-E	4.5~9V	5V	0.6A	15mA	77	1500VDC	SMD24
EC3A07S-E	4.5~9V	3.3V	0.6A	15mA	72	500VDC	SMD24
EC3A06S-E	4.5~9V	±15V	±0.1A	25mA	80	500VDC	SMD24
EC3A05S-E	4.5~9V	±12V	±0.125A	25mA	80	500VDC	SMD24
EC3A04S-E	4.5~9V	±5V	±0.3A	25mA	77	500VDC	SMD24
EC3A03S-E	4.5~9V	15V	0.2A	15mA	80	500VDC	SMD24
EC3A02S-E	4.5~9V	12V	0.25A	15mA	80	500VDC	SMD24
EC3A01S-E	4.5~9V	5V	0.6A	15mA	77	500VDC	SMD24
EC3A01-E	4.5~9V	5V	0.6A	15mA	77	500VDC	DIP24
EC3A02-E	4.5~9V	12V	0.25A	15mA	80	500VDC	DIP24
EC3A03-E	4.5~9V	15V	0.2A	15mA	80	500VDC	DIP24
EC3A04-E	4.5~9V	±5V	±0.3A	25mA	77	500VDC	DIP24
EC3A05-E	4.5~9V	±12V	±0.125A	25mA	80	500VDC	DIP24
EC3A06-E	4.5~9V	±15V	±0.1A	25mA	80	500VDC	DIP24
EC3A07-E	4.5~9V	3.3V	0.6A	15mA	72	500VDC	DIP24
EC3A01M-E	4.5~9V	5V	0.6A	15mA	77	500VDC	DIP24
EC3A02M-E	4.5~9V	12V	0.25A	15mA	80	500VDC	DIP24
EC3A03M-E	4.5~9V	15V	0.2A	15mA	80	500VDC	DIP24
EC3A04M-E	4.5~9V	±5V	±0.3A	25mA	77	500VDC	DIP24
EC3A05M-E	4.5~9V	±12V	±0.125A	25mA	80	500VDC	DIP24
EC3A06M-E	4.5~9V	±15V	±0.1A	25mA	80	500VDC	DIP24
EC3A07M-E	4.5~9V	3.3V	0.6A	15mA	72	500VDC	DIP24
EC3A01H-E	4.5~9V	5V	0.6A	15mA	77	3000VDC	DIP24
EC3A02H-E	4.5~9V	12V	0.25A	15mA	80	3000VDC	DIP24
EC3A03H-E	4.5~9V	15V	0.2A	15mA	80	3000VDC	DIP24
EC3A04H-E	4.5~9V	±5V	±0.3A	25mA	77	3000VDC	DIP24
EC3A05H-E	4.5~9V	±12V	±0.125A	25mA	80	3000VDC	DIP24
EC3A06H-E	4.5~9V	±15V	±0.1A	25mA	80	3000VDC	DIP24
EC3A07H-E	4.5~9V	3.3V	0.6A	15mA	72	3000VDC	DIP24
EC3A01HM-E	4.5~9V	5V	0.6A	15mA	77	1500VDC	DIP24
EC3A02HM-E	4.5~9V	12V	0.25A	15mA	80	1500VDC	DIP24
EC3A03HM-E	4.5~9V	15V	0.2A	15mA	80	1500VDC	DIP24
EC3A04HM-E	4.5~9V	±5V	±0.3A	25mA	77	1500VDC	DIP24
EC3A05HM-E	4.5~9V	±12V	±0.125A	25mA	80	1500VDC	DIP24
EC3A06HM-E	4.5~9V	±15V	±0.1A	25mA	80	1500VDC	DIP24
EC3A07HM-E	4.5~9V	3.3V	0.6A	15mA	72	1500VDC	DIP24
EC3A01MS-E	4.5~9V	5V	0.6A	15mA	77	500VDC	SMD24
EC3A02MS-E	4.5~9V	12V	0.25A	15mA	80	500VDC	SMD24
EC3A03MS-E	4.5~9V	15V	0.2A	15mA	80	500VDC	SMD24
EC3A04MS-E	4.5~9V	±5V	±0.3A	25mA	77	500VDC	SMD24
EC3A05MS-E	4.5~9V	±12V	±0.125A	25mA	80	500VDC	SMD24
EC3A06MS-E	4.5~9V	±15V	±0.1A	25mA	80	500VDC	SMD24
EC3A07MS-E	4.5~9V	3.3V	0.6A	15mA	72	500VDC	SMD24
EC3A01HS-E	4.5~9V	5V	0.6A	15mA	77	3000VDC	SMD24
EC3A02HS-E	4.5~9V	12V	0.25A	15mA	80	3000VDC	SMD24
EC3A03HS-E	4.5~9V	15V	0.2A	15mA	80	3000VDC	SMD24
EC3A04HS-E	4.5~9V	±5V	±0.3A	25mA	77	3000VDC	SMD24
EC3A05HS-E	4.5~9V	±12V	±0.125A	25mA	80	3000VDC	SMD24
EC3A06HS-E	4.5~9V	±15V	±0.1A	25mA	80	3000VDC	SMD24
EC3A07HS-E	4.5~9V	3.3V	0.6A	15mA	72	3000VDC	SMD24
EC3A11-E	9~18V	5V	0.6A	7.5mA	81	500VDC	DIP24
EC3A12-E	9~18V	12V	0.25A	10mA	84	500VDC	DIP24
EC3A13-E	9~18V	15V	0.2A	10mA	85	500VDC	DIP24
EC3A14-E	9~18V	±5V	±0.3A	15mA	82	500VDC	DIP24
EC3A15-E	9~18V	±12V	±0.125A	12mA	84	500VDC	DIP24
EC3A16-E	9~18V	±15V	±0.1A	15mA	85	500VDC	DIP24
EC3A17-E	9~18V	3.3V	0.6A	7.5mA	78	500VDC	DIP24
EC3A11M-E	9~18V	5V	0.6A	7.5mA	81	500VDC	DIP24
EC3A12M-E	9~18V	12V	0.25A	10mA	84	500VDC	DIP24
EC3A13M-E	9~18V	15V	0.2A	10mA	85	500VDC	DIP24
EC3A14M-E	9~18V	±5V	±0.3A	15mA	82	500VDC	DIP24
EC3A15M-E	9~18V	±12V	±0.125A	12mA	84	500VDC	DIP24
EC3A16M-E	9~18V	±15V	±0.1A	15mA	85	500VDC	DIP24
EC3A17M-E	9~18V	3.3V	0.6A	7.5mA	78	500VDC	DIP24
EC3A11H-E	9~18V	5V	0.6A	7.5mA	81	3000VDC	DIP24
EC3A12H-E	9~18V	12V	0.25A	10mA	84	3000VDC	DIP24
EC3A13H-E	9~18V	15V	0.2A	10mA	85	3000VDC	DIP24
EC3A14H-E	9~18V	±5V	±0.3A	15mA	82	3000VDC	DIP24
EC3A15H-E	9~18V	±12V	±0.125A	12mA	84	3000VDC	DIP24
EC3A16H-E	9~18V	±15V	±0.1A	15mA	85	3000VDC	DIP24
EC3A17H-E	9~18V	3.3V	0.6A	7.5mA	78	3000VDC	DIP24
EC3A11HM-E	9~18V	5V	0.6A	7.5mA	81	1500VDC	DIP24
EC3A12HM-E	9~18V	12V	0.25A	10mA	84	1500VDC	DIP24
EC3A13HM-E	9~18V	15V	0.2A	10mA	85	1500VDC	DIP24
EC3A14HM-E	9~18V	±5V	±0.3A	15mA	82	1500VDC	DIP24
EC3A15HM-E	9~18V	±12V	±0.125A	12mA	84	1500VDC	DIP24
EC3A16HM-E	9~18V	±15V	±0.1A	15mA	85	1500VDC	DIP24
EC3A17HM-E	9~18V	3.3V	0.6A	7.5mA	78	1500VDC	DIP24
EC3A11MS-E	9~18V	5V	0.6A	7.5mA	81	500VDC	SMD24
EC3A12MS-E	9~18V	12V	0.25A	10mA	84	500VDC	SMD24
EC3A13MS-E	9~18V	15V	0.2A	10mA	85	500VDC	SMD24
EC3A14MS-E	9~18V	±5V	±0.3A	15mA	82	500VDC	SMD24
EC3A15MS-E	9~18V	±12V	±0.125A	12mA	84	500VDC	SMD24
EC3A16MS-E	9~18V	±15V	±0.1A	15mA	85	500VDC	SMD24
EC3A17MS-E	9~18V	3.3V	0.6A	7.5mA	78	500VDC	SMD24
EC3A11HS-E	9~18V	5V	0.6A	7.5mA	81	3000VDC	SMD24
EC3A12HS-E	9~18V	12V	0.25A	10mA	84	3000VDC	SMD24
EC3A13HS-E	9~18V	15V	0.2A	10mA	85	3000VDC	SMD24
EC3A14HS-E	9~18V	±5V	±0.3A	15mA	82	3000VDC	SMD24
EC3A15HS-E	9~18V	±12V	±0.125A	12mA	84	3000VDC	SMD24
EC3A16HS-E	9~18V	±15V	±0.1A	15mA	85	3000VDC	SMD24
EC3A17HS-E	9~18V	3.3V	0.6A	7.5mA	78	3000VDC	SMD24
EC3A14S-E	9~18V	±5V	±0.3A	15mA	82	500VDC	SMD24
EC3A17S-E	9~18V	3.3V	0.6A	7.5mA	78	500VDC	SMD24
EC3A16S-E	9~18V	±15V	±0.1A	15mA	85	500VDC	SMD24
EC3A15S-E	9~18V	±12V	±0.125A	12mA	84	500VDC	SMD24
EC3A17HMS-E	9~18V	3.3V	0.6A	7.5mA	78	1500VDC	SMD24
EC3A13S-E	9~18V	15V	0.2A	10mA	85	500VDC	SMD24
EC3A12S-E	9~18V	12V	0.25A	10mA	84	500VDC	SMD24
EC3A11S-E	9~18V	5V	0.6A	7.5mA	81	500VDC	SMD24
EC3A11HMS-E	9~18V	5V	0.6A	7.5mA	81	1500VDC	SMD24
EC3A12HMS-E	9~18V	12V	0.25A	10mA	84	1500VDC	SMD24
EC3A13HMS-E	9~18V	15V	0.2A	10mA	85	1500VDC	SMD24
EC3A14HMS-E	9~18V	±5V	±0.3A	15mA	82	1500VDC	SMD24
EC3A15HMS-E	9~18V	±12V	±0.125A	12mA	84	1500VDC	SMD24
EC3A16HMS-E	9~18V	±15V	±0.1A	15mA	85	1500VDC	SMD24

上一篇: AC-DC電源模塊_AC-DC轉換器——PICO電源模塊

下一篇: HiQP24高輸入電壓DC-DC電源模塊PICO

成人在线精品-成人在线精品视频-成人在线免费-成人在线免费播放-成人在线免费观看视频
