?North Hills超低剖面MIL-STD-1553 SMT變壓器
發布時間：2024-10-23 17:01:06 瀏覽：376
North Hills軍用數據總線標準化MIL-STD-1553具有對滿足曼徹斯特II串行雙相數據通訊所有電氣設備需求的多功能脈沖變壓器的需求。ULP-2000系列變壓器提供適合MIL-STD-1553A和B標準所需要的匝數比配置、器件隔離和共模抑制比特性。

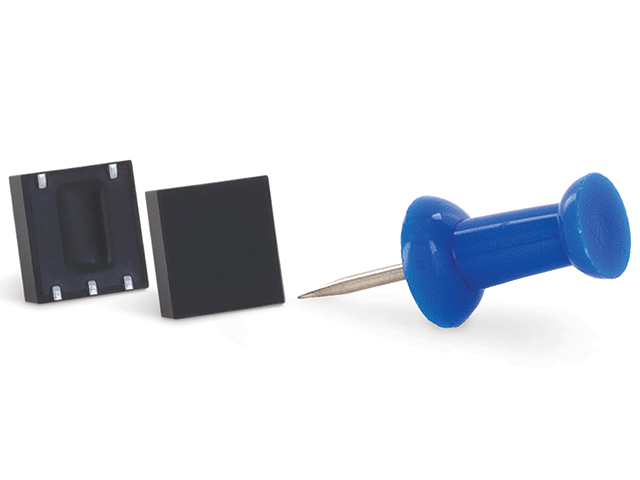

ULP-2000系列所提供的升壓和降壓比補充DDC的整體MIL-STD-1553產品線。MIL-STD-1553 SMT變壓器外型精巧，與MLP系列相比較，線路板空間降低了46%，重量減少了32%。能夠被封裝，滿足MIL-PRF-21038的性能需求。正弦或梯形波形通過精確處理，使ULP-2000系列變壓器成為任意MIL-STD-1553A或B應用的理想選擇。
特征
占用空間最小
低剖面
表面貼裝
提供磁帶和卷軸
耐傳統式IR/對流回流工藝技術
-55°C至+130°C溫度范圍
根據MIL-PRF-21038和MIL-STD-202制造和測試
滿足RoHS標準
深圳市立維創展科技是North Hills的經銷商，提供North Hills產品領域包含寬帶變壓器，寬帶巴倫變壓器，測試級回波損耗橋等，產品原裝進口，質量保證，價格優勢，歡迎咨詢。
Part Number | No. Channels, Configuration | Transceiver Voltage | Coupling | Coupling Ratio | Mounting | Max Height | Footprint (Length X Width) |
|
ULP-2033 | Single | 3.3V | Transformer Coupled | (1:3.75) | SMT | 0.185 in | .113 Sq In (.357 In X .317 In) |
|
ULP-2005 | Single | 5V | Transformer Coupled | (1:2.5) | SMT | 0.185 in | .113 Sq In (.357 In X .317 In) |
|
ULP-2015 | Single | 15V | Transformer Coupled | 1.41:1 | SMT | 0.185 in | .113 Sq In (.357 In X .317 In) |
|
ULP-2016 | Single | 3.3V | Transformer Coupled | (1:3) | SMT | 0.185 in | .113 Sq In (.357 In X .317 In) |
|
ULP-2030 | Single | 3.3V | Transformer Coupled | (1:2.65) | SMT | 0.185 in | .113 Sq In (.357 In X .317 In) |
|
ULP-2233 | Single | 3.3V | Transformer Coupled | (1:2.7) | SMT | 0.185 in | .113 Sq In (.357 In X .317 In) |
|
ULP-2205 | Single | 5V | Transformer Coupled | (1:1.79) | SMT | 0.185 in | .113 Sq In (.357 In X .317 In) |
|
ULP-2215 | Single | 15V | Transformer Coupled | (2:1) | SMT | 0.185 in | .113 Sq In (.357 In X .317 In) |
|
ULP-2216 | Single | 3.3V | Transformer Coupled | (1:2.15) | SMT | 0.185 in | .113 Sq In (.357 In X .317 In) |
|
ULP-2230 | Single | 3.3V | Transformer Coupled | (1:2.07) | SMT | 0.185 in | .113 Sq In (.357 In X .317 In) |
|
